Well 01N.74W.35.444
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

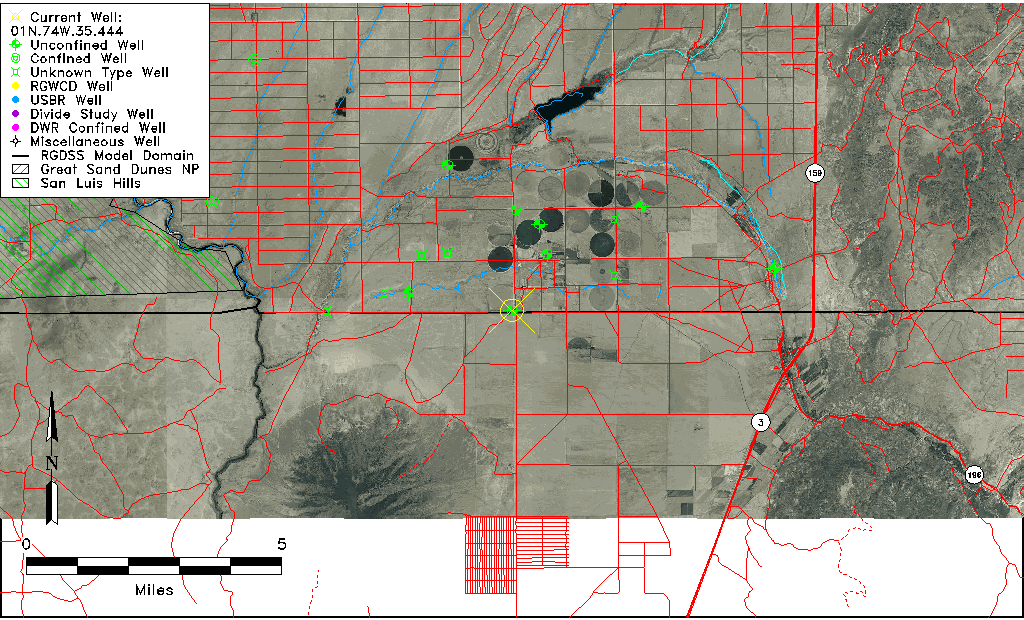

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well ID01N.74W.35.444
USGS Well ID365947105374001
USGS Station Name01N.74W.35.444
USGS Site TypeWell
USGS Site Use InformationUnknown
USGS Groundwater Use InformationUnknown
Data Source(s)USGS
Location Data
TRS01N.74W.35.444
USGS TRS 101N.74W.35.444
USGS TRSSESESES35 T01N R74W
Longitude/Latitude (NAD83)-105.62834530 , 36.99640910
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.6283453 , 36.99640910
Easting, Northing RGDSS-NAD83 (US ft)213352.39 , 215.42
USGS CountyCostilla County
USGS Map NameUTE MOUNTAIN, NM-CO
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7577.17
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7573.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7576.54
1-Arc Second NED Ground Elevation (ft NAVD88)7577.28
SRTM Ground Elevation (ft NAVD88)7575.93
Total Depth (ft)232.00
USGS Well Depth (ft)232.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 1316
Depth of Bottom of Layer 2416
Depth of Bottom of Layer 3530
Depth of Bottom of Layer 41118
Additional Well InformationNONE
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Hydrologic UnitUpper Rio Grande
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count7
Water-level Date Range07/12/1955 thru 01/25/1983
Monitored within the last 18 monthsNo, most recently on 01/25/1983
Depth-to-Water Range (ft)92.01 to 120.15
Water Table Elevation Range (ft NAVD88)7457.02 to 7485.16
Water-Level-Source:Number-of-MeasurementsUSGS:7

Top of Page


Water-level Data

1967 to Present

1934 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
07/12/1955102.107475.07USGS
07/15/195595.007482.17USGS
08/25/195592.067485.11USGS
11/09/195592.017485.16USGS
02/21/195692.227484.95USGS
04/19/195692.307484.87USGS
01/25/1983120.157457.02USGS

Top of Page
