Well NA03300901BCB CON 3-A (CON3A)
Confined

Co-located Well(s):
NA03300901BCB CON 3-B (CON3B)

Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

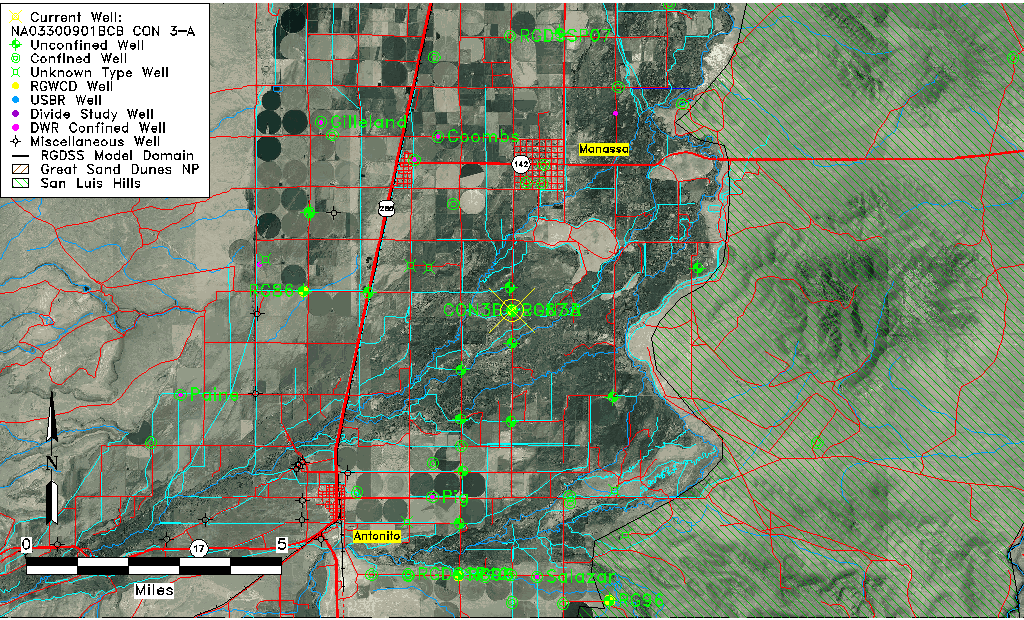

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03300901BCB CON 3-A
RGWCD Well IDCON3A
RGWCD Confined Aquifer Well IDCON3A
USGS Well ID370757105564701
USGS Station NameNA03300901BCB CON 3-A
USGS Construction Date11/15/2017
USGS Site TypeWell
USGS Site Use InformationUnknown
USGS Groundwater Use InformationUnknown
Data Source(s)USGS, RGWCD
Location Data
TRSNA03300901BCB CON 3-A
RGWCD TRSNA03300901BCB1
USGS TRS 1NA03300901BCB CON 3-A
USGS TRSSWNWS01 T33 N R009EN
Longitude/Latitude (NAD83)-105.94637586 , 37.13236111
Longitude/Latitude Data SourceDavis Engineering Survey
RGWCD Longitude/Latitude (NAD83)-105:56:46.9528 , 37:07:56.4858
USGS Longitude/Latitude (NAD83)-105.9463889 , 37.13236110
Easting, Northing RGDSS-NAD83 (US ft)120644.56 , 49806.84
USGS CountyConejos County
USGS Map NameMANASSA, CO
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7750.33
Elevation Data SourceDavis Engineering Survey
RGWCD Measuring Point Elevation (ft NAVD88)7750.333
RGWCD Well Riser Height (ft)0.000
RGWCD Ground Surface (ft NAVD88)7750.33
USGS Ground Elevation (ft NAVD88)7748.08
1/3-Arc Second NED Ground Elevation (ft NAVD88)7748.14
1-Arc Second NED Ground Elevation (ft NAVD88)7747.26
SRTM Ground Elevation (ft NAVD88)7752.70
Total Depth (ft)225.00
Depth to Top of Screen (ft)69.0
Depth to Bottom of Screen (ft)139.00
USGS Hole Depth (ft)225.00
USGS Well Depth (ft)139.00
Model Layer2
Model Layer SourceRGWCD
Depth of Bottom of Layer 137
Depth of Bottom of Layer 2220
Depth of Bottom of Layer 3380
Depth of Bottom of Layer 41527
Additional Well InformationNONE
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceRGWCD_AQ
USGS Primary AquiferCenozoic Erathem
USGS Aquifer TypeConfined Single Aquifer
USGS Hydrologic UnitConejos
USGS Data AvailableDischarge (GW.DISC)
Water-level Database Information
Water-level Count129
Water-level Date Range12/05/2017 thru 10/22/2024
Monitored within the last 18 monthsYes, most recently on 10/22/2024
Depth-to-Water Range (ft)24.16 to 30.42
Water Table Elevation Range (ft NAVD88)7719.91 to 7726.17
Water-Level-Source:Number-of-MeasurementsRGWCD:82 USGS:77

Top of Page


Water-level Data

2019 to Present

1967 to Present

Top of Page


Measurement Date
(links to field sheets)
Depth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
12/05/201724.167726.17USGS
12/05/201724.187726.15RGWCD
01/04/201824.607725.73USGS
01/04/201824.627725.71RGWCD
02/05/201826.947723.39USGS
02/05/201826.967723.37RGWCD
03/07/201825.507724.83USGS
03/07/201825.527724.81RGWCD
04/04/201825.727724.61RGWCD
04/04/201825.707724.63USGS
05/11/201824.277726.06USGS
05/11/201824.297726.04RGWCD
06/06/201824.467725.87RGWCD
06/06/201824.447725.89USGS
07/09/201828.627721.71RGWCD
07/09/201828.607721.73USGS
08/03/201828.507721.83USGS
08/03/201828.527721.81RGWCD
09/06/201829.657720.68RGWCD
09/06/201829.637720.70USGS
10/03/201828.887721.45USGS
10/03/201828.907721.43RGWCD
11/02/201828.337722.00USGS
11/02/201828.357721.98RGWCD
12/04/201828.067722.27USGS
12/04/201828.087722.25RGWCD
01/07/201927.997722.34USGS
01/07/201928.017722.32RGWCD
02/05/201927.907722.43RGWCD
02/05/201927.887722.45USGS
03/05/201928.177722.16USGS
03/05/201928.197722.14RGWCD
04/01/201928.357721.98USGS
04/01/201928.377721.96RGWCD
05/02/201927.867722.47USGS
05/02/201927.887722.45RGWCD
06/03/201926.397723.94RGWCD
06/03/201926.377723.96USGS
07/03/201925.187725.15USGS
07/03/201925.207725.13RGWCD
08/02/201925.217725.12USGS
08/02/201925.237725.10RGWCD
09/04/201926.267724.07RGWCD
09/04/201926.247724.09USGS
10/04/201926.237724.10RGWCD
10/04/201926.217724.12USGS
11/06/201925.717724.62RGWCD
11/06/201925.697724.64USGS
12/05/201925.757724.58USGS
12/05/201925.777724.56RGWCD
01/07/202026.257724.08RGWCD
02/03/202026.297724.04RGWCD
02/03/202026.277724.06USGS
03/05/202026.827723.51USGS
03/05/202026.847723.49RGWCD
04/10/202027.277723.06RGWCD
04/10/202027.257723.08USGS
05/08/202027.047723.29USGS
05/08/202027.067723.27RGWCD
06/09/202026.527723.81RGWCD
06/09/202026.507723.83USGS
07/09/202028.697721.64RGWCD
07/09/202028.587721.75USGS
08/13/202029.947720.39RGWCD
08/13/202029.837720.50USGS
09/10/202030.317720.02USGS
09/10/202030.427719.91RGWCD
10/08/202029.297721.04RGWCD
10/08/202029.187721.15USGS
11/04/202028.577721.76USGS
11/04/202028.687721.65RGWCD
12/03/202028.357721.98RGWCD,USGS
01/07/202128.297722.04RGWCD,USGS
02/10/202128.397721.94RGWCD,USGS
03/09/202128.697721.64RGWCD,USGS
04/02/202129.007721.33RGWCD
04/02/202128.997721.34USGS
05/10/202127.567722.77USGS
05/10/202127.577722.76RGWCD
06/08/202126.017724.32USGS
06/08/202126.027724.31RGWCD
07/03/202126.077724.26USGS
07/03/202126.087724.25RGWCD
08/06/202127.857722.48USGS
08/06/202127.867722.47RGWCD
09/10/202130.227720.11USGS
09/10/202130.237720.10RGWCD
10/07/202129.247721.09USGS
10/07/202130.237720.10RGWCD
11/05/202128.757721.58RGWCD,USGS
12/06/202128.547721.79RGWCD,USGS
01/13/202228.847721.49RGWCD,USGS
02/07/202229.007721.33RGWCD,USGS
03/07/202229.107721.23RGWCD,USGS
05/11/202227.287723.05RGWCD,USGS
06/09/202227.517722.82RGWCD,USGS
07/08/202227.237723.10RGWCD,USGS
08/15/202227.297723.04RGWCD,USGS
09/12/202228.847721.49RGWCD,USGS
10/05/202228.267722.07RGWCD,USGS
11/10/202227.827722.51RGWCD,USGS
12/09/202227.917722.42RGWCD,USGS
01/09/202328.197722.14RGWCD,USGS
02/09/202328.407721.93RGWCD,USGS
03/23/202328.717721.62RGWCD,USGS
04/20/202328.807721.53RGWCD
04/20/202328.797721.54USGS
05/18/202326.687723.65RGWCD
05/18/202326.677723.66USGS
06/28/202325.127725.21RGWCD
06/28/202325.117725.22USGS
07/17/202326.417723.92USGS
07/17/202326.427723.91RGWCD
08/10/202328.507721.83USGS
08/10/202328.517721.82RGWCD
09/26/202328.787721.55RGWCD,USGS
10/21/202328.587721.75RGWCD,USGS
11/20/202328.087722.25RGWCD,USGS
12/22/202328.197722.14RGWCD,USGS
01/31/202428.507721.83RGWCD,USGS
03/27/202428.857721.48RGWCD,USGS
04/22/202428.937721.40RGWCD,USGS
05/21/202426.947723.39RGWCD,USGS
06/20/202426.217724.12RGWCD,USGS
07/23/202427.507722.83RGWCD,USGS
08/21/202427.767722.57RGWCD
09/20/202428.007722.33RGWCD
10/22/202427.967722.37RGWCD
