Well NA03601134CCC USGS 371845105455001 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

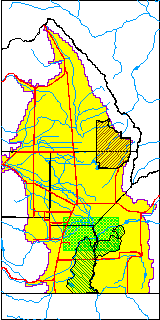

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA03601134CCC USGS 371845105455001 |
USGS Well ID | 371845105455001 |
USGS Station Name | NA03601134CCC USGS 371845105455001 |
USGS Construction Date | 01/01/1964 |
USGS Site Type | Well |
USGS Site Use Information | Withdrawal of Water |
USGS Groundwater Use Information | Irrigation |
Data Source(s) | USGS |
Location Data | |
TRS | NA03601134CCC USGS 371845105455001 |
USGS TRS 1 | NA03601134CCC USGS 371845105455001 |
USGS TRS | SWSWSWS034T0036NR0011EN |
Longitude/Latitude (NAD83) | -105.76446310 , 37.31389817 |
Longitude/Latitude Data Source | GWSI decimal LAT/LONG field |
USGS Longitude/Latitude (NAD83) | -105.7644631 , 37.31389817 |
Easting, Northing RGDSS-NAD83 (US ft) | 173721.95 , 115783.86 |
USGS Topography | Valley flat |
USGS County | Conejos County |
USGS Map Name | PIKES STOCKADE |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7520.94 |
Elevation Data Source | USGS GWSI database |
USGS Ground Elevation (ft NGVD29) | 7517.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7517.99 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7518.54 |
SRTM Ground Elevation (ft NAVD88) | 7519.90 |
Total Depth (ft) | 318.00 |
USGS Well Depth (ft) | 318.00 |
Model Layer | 3 |
Model Layer Source | Well Depth |
Depth of Bottom of Layer 1 | 27 |
Depth of Bottom of Layer 2 | 207 |
Depth of Bottom of Layer 3 | 535 |
Depth of Bottom of Layer 4 | 1991 |
Additional Well Information | Geohydrology, Construction |
Aquifer Information | |
Aquifer Type | Confined |
Aquifer Type Source | TD Elevation/Model Layer |
USGS Primary Aquifer | Cenozoic Erathem |
USGS Hydrologic Unit | Alamosa-Trinchera |
USGS Data Available | Water-level (GW.LEV) |
Water-level Database Information | |
Water-level Count | 2 |
Water-level Date Range | 01/20/1969 thru 02/16/1970 |
Monitored within the last 18 months | No, most recently on 02/16/1970 |
Depth-to-Water Range (ft) | -41.50 to -39.50 |
Water Table Elevation Range (ft NAVD88) | 7560.44 to 7562.44 |
Water-Level-Source:Number-of-Measurements | USGS:2 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
01/20/1969 | -41.50 | 7562.44 | USGS |
02/16/1970 | -39.50 | 7560.44 | USGS |
