Well NA03700830CCC USGS 372450106085001 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

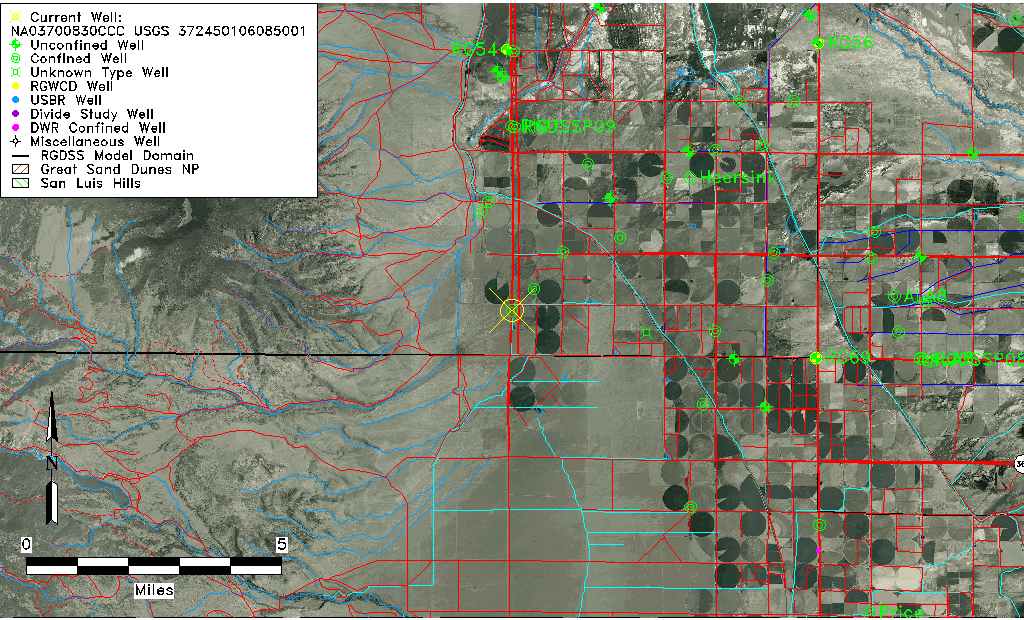

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA03700830CCC USGS 372450106085001 |
USGS Well ID | 372450106085001 |
USGS Station Name | NA03700830CCC USGS 372450106085001 |
USGS Construction Date | 01/01/1953 |
USGS Site Type | Well |
USGS Site Use Information | Withdrawal of Water |
USGS Groundwater Use Information | Irrigation |
Data Source(s) | USGS |
Location Data | |
TRS | NA03700830CCC USGS 372450106085001 |
USGS TRS 1 | NA03700830CCC USGS 372450106085001 |
Longitude/Latitude (NAD83) | -106.14780670 , 37.41389396 |
Longitude/Latitude Data Source | GWSI decimal LAT/LONG field |
USGS Longitude/Latitude (NAD83) | -106.1478067 , 37.41389396 |
Easting, Northing RGDSS-NAD83 (US ft) | 62453.56 , 152517.81 |
USGS County | Rio Grande County |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7766.27 |
Elevation Data Source | USGS GWSI database |
USGS Ground Elevation (ft NGVD29) | 7761.90 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7790.06 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7790.22 |
SRTM Ground Elevation (ft NAVD88) | 7798.84 |
Total Depth (ft) | 183.00 |
USGS Well Depth (ft) | 183.00 |
Model Layer | 2 |
Model Layer Source | Well Depth |
Depth of Bottom of Layer 2 | 180 |
Depth of Bottom of Layer 3 | 330 |
Depth of Bottom of Layer 4 | 1385 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Confined |
Aquifer Type Source | TD Elevation/Model Layer |
USGS Hydrologic Unit | Alamosa-Trinchera |
USGS Data Available | Miscellaneous (GW.MISC) |
Water-level Database Information | |
Water-level Count | 1 |
Water-level Date Range | 06/23/1967 thru 06/23/1967 |
Monitored within the last 18 months | No, most recently on 06/23/1967 |
Depth-to-Water Range (ft) | 116.36 to 116.36 |
Water Table Elevation Range (ft NAVD88) | 7649.91 to 7649.91 |
Water-Level-Source:Number-of-Measurements | USGS:1 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
06/23/1967 | 116.36 | 7649.91 | USGS |
