Well NA03700928CCB2
Confined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

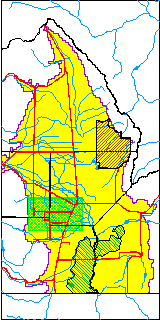

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03700928CCB2
USGS Well ID372500106000002
USGS Station NameNA03700928CCB2
USGS Construction Date01/01/1964
USGS Site TypeWell
USGS Site Use InformationWithdrawal of Water
USGS Groundwater Use InformationIrrigation
Data Source(s)USGS
Location Data
TRSNA03700928CCB2
USGS TRS 1NA03700928CCB2
USGS TRSNWSWSWS028T0037NR0009EN
Longitude/Latitude (NAD83)-106.00058000 , 37.41667166
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.0005800 , 37.41667166
Easting, Northing RGDSS-NAD83 (US ft)105205.17 , 153346.41
USGS TopographyValley flat
USGS CountyAlamosa County
USGS Map NameWAVERLY
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7590.09
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7586.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7584.10
1-Arc Second NED Ground Elevation (ft NAVD88)7583.76
SRTM Ground Elevation (ft NAVD88)7585.59
Total Depth (ft)2640.00
USGS Well Depth (ft)2640.00
Model Layer4
Model Layer SourceWell Depth
Depth of Bottom of Layer 125
Depth of Bottom of Layer 2242
Depth of Bottom of Layer 3633
Depth of Bottom of Layer 42179
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitAlamosa-Trinchera
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count2
Water-level Date Range01/17/1969 thru 02/21/1970
Monitored within the last 18 monthsNo, most recently on 02/21/1970
Depth-to-Water Range (ft)-35.40 to -34.00
Water Table Elevation Range (ft NAVD88)7624.09 to 7625.49
Water-Level-Source:Number-of-MeasurementsUSGS:2

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/17/1969-34.007624.09USGS
02/21/1970-35.407625.49USGS
