Well NA03701027BBC RG57-2 (RG57-2) | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

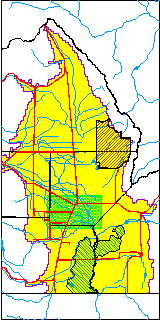

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA03701027BBC RG57-2 |
RGWCD Well ID | RG57-2 |
USGS Well ID | 372537105523001 |
USGS Station Name | NA03701027BBC RG57-2 |
USGS Construction Date | 01/01/1977 |
USGS Site Type | Well |
USGS Site Use Information | Unused |
USGS Groundwater Use Information | Unknown |
Data Source(s) | USGS, RGWCD |
Location Data | |
TRS | NA03701027BBC RG57-2 |
RGWCD TRS | NA03701027BBC |
USGS TRS 1 | NA03701027BBC RG57-2 |
USGS TRS | SWNWNWS027T0037NR0010EN |
Longitude/Latitude (NAD83) | -105.87462500 , 37.42752222 |
Longitude/Latitude Data Source | RGWCD/Davis Engineering |
RGWCD Longitude/Latitude (NAD83) | -105:52:28.65 , 37:25:39.08 |
USGS Longitude/Latitude (NAD83) | -105.8755771 , 37.42695010 |
Easting, Northing RGDSS-NAD83 (US ft) | 141783.27 , 157192.89 |
USGS Topography | Valley flat |
USGS County | Alamosa County |
USGS Map Name | ALAMOSA EAST |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7533.90 |
Elevation Data Source | RGWCD well database |
RGWCD Measuring Point Elevation (ft NAVD88) | 7534.700 |
RGWCD Well Riser Height (ft) | 0.800 |
RGWCD Ground Surface (ft NAVD88) | 7533.90 |
USGS Ground Elevation (ft NGVD29) | 7530.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7537.48 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7534.96 |
SRTM Ground Elevation (ft NAVD88) | 7547.01 |
Total Depth (ft) | 25.90 |
USGS Well Depth (ft) | 25.90 |
Model Layer | 1 |
Model Layer Source | RGWCD |
Depth of Bottom of Layer 1 | 33 |
Depth of Bottom of Layer 2 | 401 |
Depth of Bottom of Layer 3 | 674 |
Depth of Bottom of Layer 4 | 2343 |
Additional Well Information | Geohydrology, Construction, Aquifer |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | RGWCD_AQ |
USGS Primary Aquifer | Cenozoic Erathem |
USGS Aquifer Type | Unconfined Single Aquifer |
USGS Hydrologic Unit | Alamosa-Trinchera |
USGS Data Available | Water-level (GW.LEV) |
Water-level Database Information | |
Water-level Count | 570 |
Water-level Date Range | 04/28/1978 thru 11/15/2024 |
Monitored within the last 18 months | Yes, most recently on 11/15/2024 |
Depth-to-Water Range (ft) | 0.09 to 6.37 |
Water Table Elevation Range (ft NAVD88) | 7527.53 to 7533.81 |
Water-Level-Source:Number-of-Measurements | RGWCD:535 USGS:491 |
