Well NA03701117CCC1-ANWR-P12
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

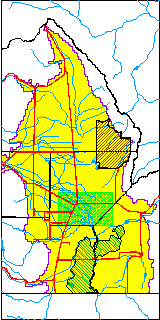

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03701117CCC1-ANWR-P12
USGS Well ID372645105480601
USGS Station NameNA03701117CCC1-ANWR-P12
USGS Construction Date02/24/1994
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA03701117CCC1-ANWR-P12
USGS TRS 1NA03701117CCC1-ANWR-P12
USGS TRSSWSWSWS17 T37N R11E N
Longitude/Latitude (NAD83)-105.80168650 , 37.44583910
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.8016865 , 37.44583910
Easting, Northing RGDSS-NAD83 (US ft)162965.98 , 163822.83
USGS TopographyAlluvial or Marine Terrace
USGS CountyAlamosa County
USGS Map NameALAMOSA EAST
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7530.80
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7526.87
1/3-Arc Second NED Ground Elevation (ft NAVD88)7528.80
1-Arc Second NED Ground Elevation (ft NAVD88)7527.38
SRTM Ground Elevation (ft NAVD88)7529.06
Total Depth (ft)15.50
USGS Hole Depth (ft)15.50
USGS Well Depth (ft)15.50
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 151
Depth of Bottom of Layer 2244
Depth of Bottom of Layer 3647
Depth of Bottom of Layer 42352
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Aquifer TypeUnconfined Single Aquifer
USGS Hydrologic UnitAlamosa-Trinchera
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count201
Water-level Date Range03/15/1994 thru 08/27/1998
Monitored within the last 18 monthsNo, most recently on 08/27/1998
Depth-to-Water Range (ft)1.57 to 5.91
Water Table Elevation Range (ft NAVD88)7524.89 to 7529.23
Water-Level-Source:Number-of-MeasurementsUSGS:201

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
03/15/19943.127527.68USGS
03/21/19942.697528.11USGS
03/30/19941.867528.94USGS
04/09/19941.617529.19USGS
04/16/19941.637529.17USGS
04/23/19941.577529.23USGS
04/30/19941.697529.11USGS
05/07/19941.817528.99USGS
05/11/19941.587529.22USGS
05/17/19941.747529.06USGS
05/24/19941.897528.91USGS
05/31/19941.857528.95USGS
06/07/19942.527528.28USGS
06/14/19943.097527.71USGS
06/21/19943.637527.17USGS
06/28/19944.167526.64USGS
07/05/19944.027526.78USGS
07/12/19944.827525.98USGS
07/19/19945.027525.78USGS
07/26/19945.177525.63USGS
08/02/19945.327525.48USGS
08/09/19945.457525.35USGS
08/15/19945.597525.21USGS
08/23/19945.617525.19USGS
09/04/19945.557525.25USGS
09/10/19945.177525.63USGS
09/15/19944.527526.28USGS
09/24/19944.077526.73USGS
10/12/19942.657528.15USGS
10/15/19942.557528.25USGS
10/21/19942.447528.36USGS
10/27/19942.417528.39USGS
11/02/19942.367528.44USGS
11/23/19942.407528.40USGS
12/02/19942.617528.19USGS
12/19/19943.107527.70USGS
01/03/19953.427527.38USGS
01/17/19953.607527.20USGS
02/04/19953.777527.03USGS
02/11/19953.567527.24USGS
02/18/19953.417527.39USGS
02/25/19953.277527.53USGS
03/04/19953.187527.62USGS
03/11/19953.147527.66USGS
03/18/19952.247528.56USGS
03/29/19951.837528.97USGS
04/04/19951.817528.99USGS
04/08/19951.847528.96USGS
04/12/19951.877528.93USGS
04/20/19951.827528.98USGS
04/29/19951.817528.99USGS
05/11/19952.087528.72USGS
05/18/19952.097528.71USGS
05/25/19952.207528.60USGS
06/01/19952.507528.30USGS
06/07/19952.487528.32USGS
06/15/19953.157527.65USGS
06/22/19953.617527.19USGS
06/29/19953.107527.70USGS
07/06/19951.937528.87USGS
07/13/19952.527528.28USGS
07/20/19952.027528.78USGS
07/27/19952.647528.16USGS
08/04/19953.507527.30USGS
08/10/19953.957526.85USGS
08/17/19954.297526.51USGS
08/23/19954.557526.25USGS
08/31/19954.747526.06USGS
09/07/19954.727526.08USGS
09/14/19953.967526.84USGS
09/23/19953.027527.78USGS
09/28/19952.597528.21USGS
10/11/19952.507528.30USGS
10/19/19952.477528.33USGS
10/26/19952.417528.39USGS
11/02/19952.357528.45USGS
11/11/19952.317528.49USGS
11/24/19952.407528.40USGS
11/30/19952.457528.35USGS
12/08/19952.457528.35USGS
12/14/19952.517528.29USGS
01/09/19963.517527.29USGS
01/17/19963.617527.19USGS
01/26/19963.847526.96USGS
02/01/19963.877526.93USGS
02/08/19963.927526.88USGS
02/16/19963.847526.96USGS
03/11/19963.527527.28USGS
03/18/19963.397527.41USGS
03/25/19963.237527.57USGS
04/01/19962.577528.23USGS
04/08/19962.057528.75USGS
04/19/19962.127528.68USGS
04/26/19962.087528.72USGS
05/03/19962.007528.80USGS
05/10/19962.047528.76USGS
05/16/19962.227528.58USGS
05/23/19962.287528.52USGS
05/30/19962.387528.42USGS
06/06/19962.787528.02USGS
06/20/19962.447528.36USGS
06/27/19963.717527.09USGS
07/05/19964.297526.51USGS
07/12/19964.547526.26USGS
07/20/19964.697526.11USGS
07/26/19965.027525.78USGS
08/02/19965.237525.57USGS
08/09/19965.397525.41USGS
08/15/19965.567525.24USGS
08/21/19965.687525.12USGS
08/28/19965.757525.05USGS
09/06/19965.857524.95USGS
09/12/19965.917524.89USGS
09/19/19965.917524.89USGS
09/26/19965.897524.91USGS
10/04/19965.837524.97USGS
10/10/19965.767525.04USGS
10/17/19965.677525.13USGS
10/24/19965.397525.41USGS
10/31/19965.487525.32USGS
11/14/19965.197525.61USGS
11/21/19964.997525.81USGS
12/05/19964.927525.88USGS
12/12/19964.907525.90USGS
12/19/19964.917525.89USGS
01/03/19974.917525.89USGS
01/09/19974.937525.87USGS
01/16/19974.877525.93USGS
01/23/19975.037525.77USGS
01/30/19975.057525.75USGS
02/06/19975.007525.80USGS
02/13/19975.327525.48USGS
02/20/19975.067525.74USGS
03/06/19974.877525.93USGS
03/13/19974.827525.98USGS
03/20/19974.777526.03USGS
03/27/19974.677526.13USGS
04/03/19974.567526.24USGS
04/10/19974.207526.60USGS
04/17/19973.477527.33USGS
04/24/19973.537527.27USGS
05/03/19972.887527.92USGS
05/08/19972.797528.01USGS
05/15/19972.717528.09USGS
05/21/19972.557528.25USGS
05/29/19972.967527.84USGS
06/05/19972.457528.35USGS
06/12/19973.047527.76USGS
06/19/19973.367527.44USGS
06/26/19973.407527.40USGS
07/03/19973.327527.48USGS
07/10/19973.267527.54USGS
07/17/19973.197527.61USGS
07/24/19973.257527.55USGS
07/31/19973.267527.54USGS
08/07/19973.297527.51USGS
08/14/19973.257527.55USGS
08/21/19973.267527.54USGS
08/29/19973.307527.50USGS
09/03/19973.337527.47USGS
09/10/19973.227527.58USGS
09/17/19973.297527.51USGS
09/24/19973.117527.69USGS
10/01/19972.997527.81USGS
11/12/19972.057528.75USGS
11/19/19972.267528.54USGS
11/26/19972.297528.51USGS
12/10/19972.527528.28USGS
12/17/19972.637528.17USGS
01/07/19983.007527.80USGS
01/14/19983.117527.69USGS
01/21/19983.367527.44USGS
01/28/19983.447527.36USGS
02/04/19983.657527.15USGS
02/11/19983.657527.15USGS
02/18/19983.697527.11USGS
02/25/19983.457527.35USGS
03/04/19983.457527.35USGS
03/11/19983.397527.41USGS
03/18/19983.297527.51USGS
03/25/19982.937527.87USGS
04/03/19982.737528.07USGS
04/09/19982.307528.50USGS
04/23/19981.777529.03USGS
04/30/19981.757529.05USGS
05/07/19981.787529.02USGS
05/14/19981.877528.93USGS
05/21/19981.937528.87USGS
05/28/19982.117528.69USGS
06/04/19982.417528.39USGS
06/10/19982.817527.99USGS
06/18/19981.637529.17USGS
06/25/19981.827528.98USGS
07/02/19981.987528.82USGS
07/09/19982.387528.42USGS
07/16/19983.277527.53USGS
07/30/19984.777526.03USGS
08/06/19984.927525.88USGS
08/13/19985.017525.79USGS
08/20/19985.207525.60USGS
08/27/19985.317525.49USGS
