Well NA03801233CCC
Unconfined

Co-located Well(s):
NA03801233CCC2

Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

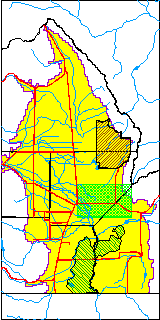

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.

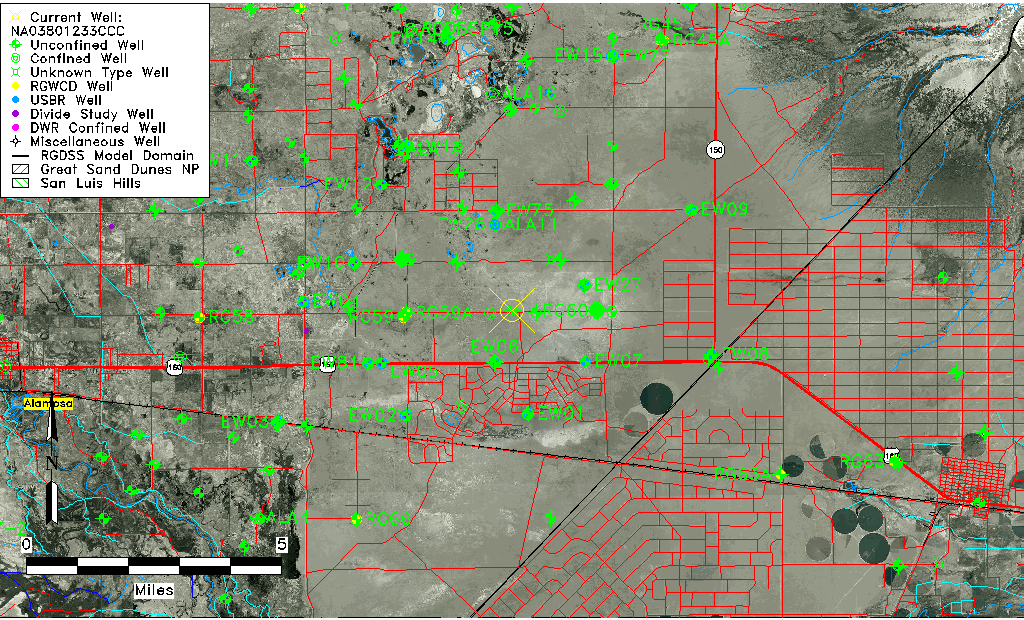

View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03801233CCC
USGS Well ID372840105404001
USGS Station NameNA03801233CCC
USGS Construction Date01/01/1967
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA03801233CCC
USGS TRS 1NA03801233CCC
USGS TRSSWSWSWS033T0038NR0012EN
Longitude/Latitude (NAD83)-105.67418340 , 37.48972768
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.6741834 , 37.48972768
Easting, Northing RGDSS-NAD83 (US ft)199970.20 , 179771.97
USGS TopographyValley flat
USGS CountyAlamosa County
USGS Map NameBALDY
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7568.14
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7564.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7569.11
1-Arc Second NED Ground Elevation (ft NAVD88)7568.41
SRTM Ground Elevation (ft NAVD88)7562.46
Total Depth (ft)16.00
USGS Well Depth (ft)16.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 176
Depth of Bottom of Layer 2229
Depth of Bottom of Layer 3686
Depth of Bottom of Layer 42172
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count25
Water-level Date Range10/03/1967 thru 01/09/1989
Monitored within the last 18 monthsNo, most recently on 01/09/1989
Depth-to-Water Range (ft)4.53 to 14.89
Water Table Elevation Range (ft NAVD88)7553.25 to 7563.61
Water-Level-Source:Number-of-MeasurementsUSGS:25

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
10/03/19676.137562.01USGS
01/15/19685.657562.49USGS
04/01/19685.307562.84USGS
07/01/19685.777562.37USGS
09/25/19684.907563.24USGS
01/27/19694.907563.24USGS
04/01/19694.537563.61USGS
06/25/19694.777563.37USGS
11/26/19695.347562.80USGS
12/06/19716.087562.06USGS
04/01/19756.277561.87USGS
01/11/19776.737561.41USGS
10/19/19777.147561.00USGS
01/10/19786.987561.16USGS
01/25/19797.367560.78USGS
01/15/19807.487560.66USGS
01/15/19817.687560.46USGS
01/18/19827.767560.38USGS
01/05/19838.087560.06USGS
01/17/19848.297559.85USGS
01/15/19858.267559.88USGS
01/17/19868.657559.49USGS
01/22/198710.507557.64USGS
01/11/198813.497554.65USGS
01/09/198914.897553.25USGS
