Well NA03701101AAA2 RG59A (RG59A) | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

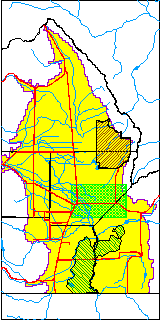

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA03701101AAA2 RG59A |
RGWCD Well ID | RG59A |
USGS Well ID | 372919105421201 |
USGS Station Name | NA03701101AAA2 RG59A |
USGS Site Type | Well |
USGS Site Use Information | Observation |
USGS Groundwater Use Information | Unused |
Data Source(s) | USGS, RGWCD |
Location Data | |
TRS | NA03701101AAA2 RG59A |
RGWCD TRS | NA03701101AAA2 |
USGS TRS 1 | NA03701101AAA2 RG59A |
Longitude/Latitude (NAD83) | -105.71189722 , 37.48898611 |
Longitude/Latitude Data Source | RGWCD/Davis Engineering |
RGWCD Longitude/Latitude (NAD83) | -105:42:42.83 , 37:29:20.35 |
USGS Longitude/Latitude (NAD83) | -105.7041842 , 37.48861644 |
Easting, Northing RGDSS-NAD83 (US ft) | 189031.33 , 179504.66 |
USGS Topography | Flat Surface |
USGS County | Alamosa County |
USGS Map Name | BALDY |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7547.30 |
Elevation Data Source | RGWCD well database |
RGWCD Measuring Point Elevation (ft NAVD88) | 7549.300 |
RGWCD Well Riser Height (ft) | 2.000 |
RGWCD Ground Surface (ft NAVD88) | 7547.30 |
USGS Ground Elevation (ft NGVD29) | 7544.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7549.04 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7547.62 |
SRTM Ground Elevation (ft NAVD88) | 7551.35 |
Total Depth (ft) | 29.00 |
USGS Hole Depth (ft) | 30.00 |
Model Layer | 1 |
Model Layer Source | RGWCD |
Depth of Bottom of Layer 1 | 72 |
Depth of Bottom of Layer 2 | 249 |
Depth of Bottom of Layer 3 | 756 |
Depth of Bottom of Layer 4 | 2564 |
Additional Well Information | Logs, Geohydrology, Construction, Aquifer |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | RGWCD_AQ |
USGS Hydrologic Unit | San Luis |
USGS Data Available | Water-level (GW.LEV) |
Water-level Database Information | |
Water-level Count | 552 |
Water-level Date Range | 08/03/1979 thru 11/01/2024 |
Monitored within the last 18 months | Yes, most recently on 11/01/2024 |
Depth-to-Water Range (ft) | 3.77 to 13.59 |
Water Table Elevation Range (ft NAVD88) | 7533.71 to 7543.53 |
Water-Level-Source:Number-of-Measurements | RGWCD:536 USGS:518 |
