Well NA03801231AAA2
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

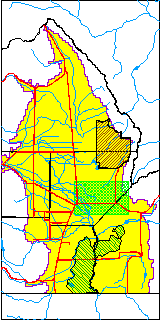

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03801231AAA2
USGS Well ID373012105413602
USGS Station NameNA03801231AAA2
USGS Construction Date08/16/1977
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnknown
Data Source(s)USGS
Location Data
TRSNA03801231AAA2
USGS TRS 1NA03801231AAA2
Longitude/Latitude (NAD83)-105.69390610 , 37.50333836
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.6939061 , 37.50333836
Easting, Northing RGDSS-NAD83 (US ft)194250.95 , 184727.09
USGS TopographyValley flat
USGS CountyAlamosa County
USGS Map NameDRY LAKES
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7546.90
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7542.80
1/3-Arc Second NED Ground Elevation (ft NAVD88)7548.92
1-Arc Second NED Ground Elevation (ft NAVD88)7547.71
SRTM Ground Elevation (ft NAVD88)7543.11
Total Depth (ft)5.40
USGS Hole Depth (ft)5.40
USGS Well Depth (ft)5.40
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 161
Depth of Bottom of Layer 2257
Depth of Bottom of Layer 3765
Depth of Bottom of Layer 42475
Additional Well InformationConstruction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count1
Water-level Date Range01/30/1980 thru 01/30/1980
Monitored within the last 18 monthsNo, most recently on 01/30/1980
Depth-to-Water Range (ft)3.37 to 3.37
Water Table Elevation Range (ft NAVD88)7543.53 to 7543.53
Water-Level-Source:Number-of-MeasurementsUSGS:1

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/30/19803.377543.53USGS
