Well NA03801125DDD8
Confined

Co-located Well(s):
NA03801125DDD6
NA03801125DDD7

Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

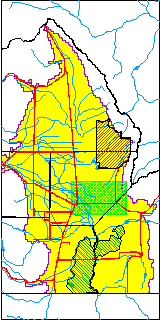

Index Map showing
model domain.

Green shaded area
enlarged below.

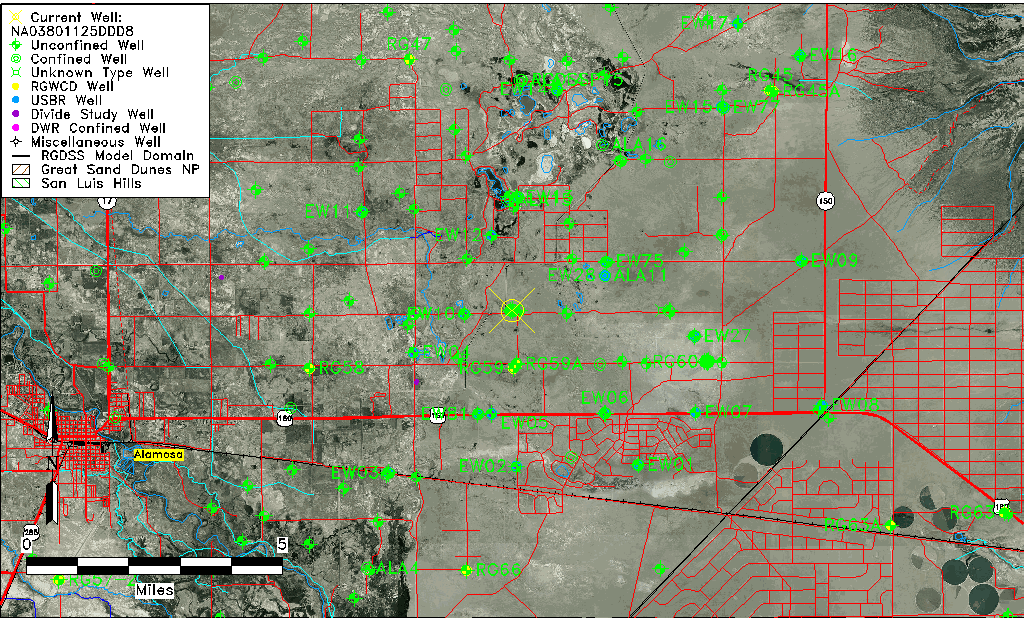

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03801125DDD8
USGS Well ID373015105424603
USGS Station NameNA03801125DDD8
USGS Construction Date09/01/1976
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA03801125DDD8
USGS TRS 1NA03801125DDD8
USGS TRSSESESES25 T038N R011E N
Longitude/Latitude (NAD83)-105.71335100 , 37.50417158
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.7133510 , 37.50417158
Easting, Northing RGDSS-NAD83 (US ft)188612.19 , 185032.38
USGS TopographyValley flat
USGS CountyAlamosa County
USGS Map NameDRY LAKES
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7534.06
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7530.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7533.59
1-Arc Second NED Ground Elevation (ft NAVD88)7535.08
SRTM Ground Elevation (ft NAVD88)7526.36
Total Depth (ft)80.00
USGS Hole Depth (ft)80.00
USGS Well Depth (ft)80.00
Model Layer2
Model Layer SourceWell Depth
Depth of Bottom of Layer 159
Depth of Bottom of Layer 2266
Depth of Bottom of Layer 3799
Depth of Bottom of Layer 42612
Additional Well InformationGeohydrology, Construction, Aquifer
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferTertiary System
USGS Hydrologic UnitSan Luis
USGS Data AvailableGeohydrologic
Water-level Database Information
Water-level Count1
Water-level Date Range09/20/1976 thru 09/20/1976
Monitored within the last 18 monthsNo, most recently on 09/20/1976
Depth-to-Water Range (ft)4.26 to 4.26
Water Table Elevation Range (ft NAVD88)7529.80 to 7529.80
Water-Level-Source:Number-of-MeasurementsUSGS:1

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
09/20/19764.267529.80USGS
