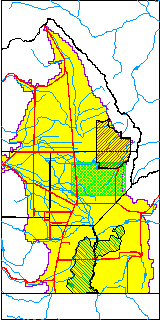

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA03901125AAA
USGS Well ID373535105430001
USGS Station NameNA03901125AAA
USGS Construction Date01/01/1967
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA03901125AAA
USGS TRS 1NA03901125AAA
USGS TRSNENENES025T0039NR0011EN
Longitude/Latitude (NAD83)-105.71507320 , 37.60364177
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.7150732 , 37.60364177
Easting, Northing RGDSS-NAD83 (US ft)188130.33 , 221240.31
USGS TopographyValley flat
USGS CountyAlamosa County
USGS Map NameDRY LAKES
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7526.08
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7522.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7523.93
1-Arc Second NED Ground Elevation (ft NAVD88)7523.00
SRTM Ground Elevation (ft NAVD88)7526.64
Total Depth (ft)20.00
USGS Well Depth (ft)20.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 161
Depth of Bottom of Layer 2345
Depth of Bottom of Layer 31076
Depth of Bottom of Layer 43128
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Aquifer TypeUnconfined Single Aquifer
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count56
Water-level Date Range10/04/1967 thru 02/21/2024
Monitored within the last 18 monthsYes, most recently on 02/21/2024
Depth-to-Water Range (ft)10.55 to 12.02
Water Table Elevation Range (ft NAVD88)7514.06 to 7515.53
Water-Level-Source:Number-of-MeasurementsUSGS:56

Top of Page


Water-level Data

2019 to Present

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
10/04/196711.857514.23USGS
01/15/196811.627514.46USGS
04/01/196811.547514.54USGS
07/01/196811.737514.35USGS
09/26/196811.907514.18USGS
01/28/196911.707514.38USGS
04/01/196911.597514.49USGS
06/24/196911.767514.32USGS
11/26/196911.777514.31USGS
10/11/197211.927514.16USGS
04/01/197511.727514.36USGS
11/18/197611.907514.18USGS
01/11/197711.807514.28USGS
10/19/197711.997514.09USGS
01/10/197811.807514.28USGS
05/24/197811.647514.44USGS
07/12/197811.927514.16USGS
01/23/197911.847514.24USGS
01/16/198011.947514.14USGS
01/15/198112.027514.06USGS
01/05/198311.927514.16USGS
01/16/198611.917514.17USGS
01/13/198911.407514.68USGS
01/12/199011.467514.62USGS
03/31/199410.907515.18USGS
03/14/199510.957515.13USGS
03/26/199610.867515.22USGS
03/19/199710.887515.20USGS
02/24/199810.857515.23USGS
02/12/199910.787515.30USGS
02/14/200010.687515.40USGS
02/27/200110.737515.35USGS
02/12/200210.637515.45USGS
01/21/200310.807515.28USGS
01/15/200410.817515.27USGS
01/06/200510.647515.44USGS
01/06/200610.847515.24USGS
01/09/200710.667515.42USGS
01/15/200810.607515.48USGS
01/29/200910.557515.53USGS
01/26/201010.647515.44USGS
02/03/201110.827515.26USGS
01/19/201210.857515.23USGS
01/09/201310.947515.14USGS
01/14/201410.837515.25USGS
01/06/201510.987515.10USGS
01/04/201610.997515.09USGS
01/09/201711.087515.00USGS
01/16/201811.067515.02USGS
01/15/201911.217514.87USGS
01/15/202011.207514.88USGS
02/02/202111.207514.88USGS
04/22/202111.107514.98USGS
01/25/202211.317514.77USGS
02/06/202311.177514.91USGS
02/21/202411.297514.79USGS
