Well NA04000830BCB
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

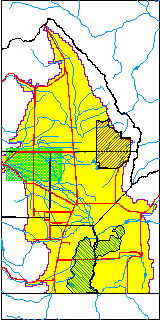

Index Map showing
model domain.

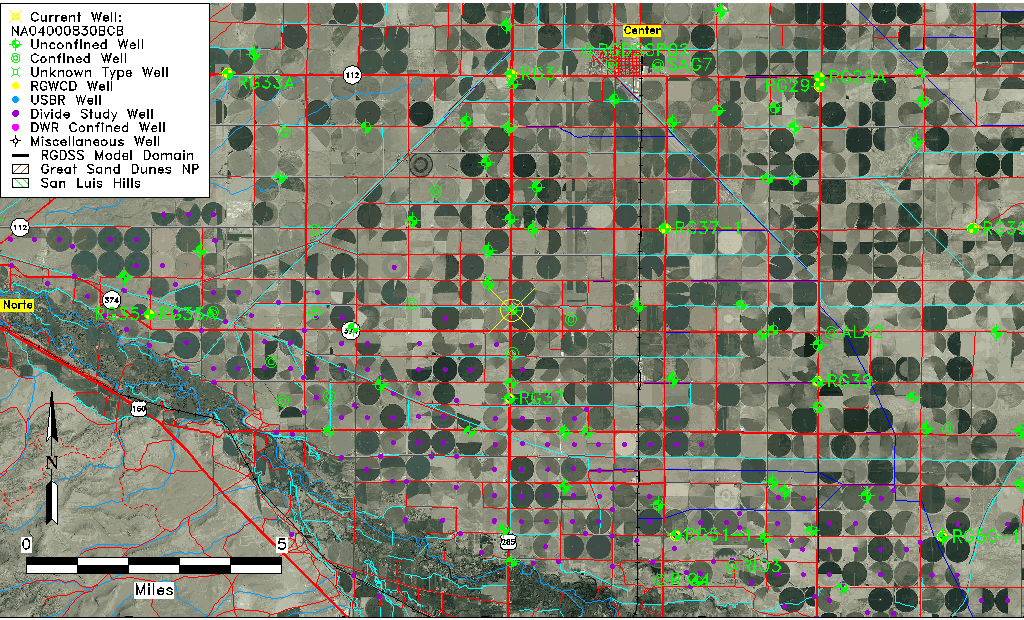

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04000830BCB
USGS Well ID374054106085101
USGS Station NameNA04000830BCB
USGS Construction Date01/01/1967
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA04000830BCB
USGS TRS 1NA04000830BCB
USGS TRSNWSWNWS030T0040NR0008EN
Longitude/Latitude (NAD83)-106.14808390 , 37.68166850
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.1480839 , 37.68166850
Easting, Northing RGDSS-NAD83 (US ft)62869.28 , 249995.83
USGS TopographyValley flat
USGS CountyRio Grande County
Elevation and Depth Data
Ground Elevation (ft NAVD88)7683.60
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7679.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7682.29
1-Arc Second NED Ground Elevation (ft NAVD88)7682.21
SRTM Ground Elevation (ft NAVD88)7689.64
Total Depth (ft)16.00
USGS Well Depth (ft)16.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 192
Depth of Bottom of Layer 2212
Depth of Bottom of Layer 3277
Depth of Bottom of Layer 42212
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count6
Water-level Date Range01/27/1969 thru 11/29/1971
Monitored within the last 18 monthsNo, most recently on 11/29/1971
Depth-to-Water Range (ft)4.87 to 10.18
Water Table Elevation Range (ft NAVD88)7673.42 to 7678.73
Water-Level-Source:Number-of-MeasurementsUSGS:6

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/27/19697.037676.57USGS
04/01/19698.237675.37USGS
07/01/19694.877678.73USGS
09/23/19695.797677.81USGS
12/01/19695.627677.98USGS
11/29/197110.187673.42USGS
