Well NA04000724CBB | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

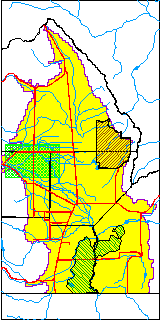

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA04000724CBB |
USGS Well ID | 374155106092201 |
USGS Station Name | NA04000724CBB |
USGS Construction Date | 01/01/1936 |
USGS Site Type | Well |
USGS Site Use Information | Withdrawal of Water |
USGS Groundwater Use Information | Irrigation |
Data Source(s) | USGS |
Location Data | |
TRS | NA04000724CBB |
USGS TRS 1 | NA04000724CBB |
USGS TRS | SWNES24 T40N R07E N |
Longitude/Latitude (NAD83) | -106.15669520 , 37.69861284 |
Longitude/Latitude Data Source | GWSI decimal LAT/LONG field |
USGS Longitude/Latitude (NAD83) | -106.1566952 , 37.69861284 |
Easting, Northing RGDSS-NAD83 (US ft) | 60410.05 , 256177.10 |
USGS County | Rio Grande County |
USGS Map Name | SEVENMILE PLAZA, CO |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7688.00 |
Elevation Data Source | USGS GWSI database |
USGS Ground Elevation (ft NAVD88) | 7688.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7687.75 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7687.63 |
SRTM Ground Elevation (ft NAVD88) | 7693.55 |
Total Depth (ft) | 80.00 |
USGS Well Depth (ft) | 80.00 |
Model Layer | 1 |
Model Layer Source | Well Depth |
Depth of Bottom of Layer 1 | 99 |
Depth of Bottom of Layer 2 | 174 |
Depth of Bottom of Layer 3 | 250 |
Depth of Bottom of Layer 4 | 2252 |
Additional Well Information | Production, Construction |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | TD Elevation/Model Layer |
USGS Primary Aquifer | 112ALMS |
USGS Hydrologic Unit | San Luis |
USGS Data Available | Discharge (GW.DISC) |
Water-level Database Information | |
Water-level Count | 1 |
Water-level Date Range | 08/01/1966 thru 08/01/1966 |
Monitored within the last 18 months | No, most recently on 08/01/1966 |
Depth-to-Water Range (ft) | 5.20 to 5.20 |
Water Table Elevation Range (ft NAVD88) | 7682.80 to 7682.80 |
Water-Level-Source:Number-of-Measurements | USGS:1 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
08/01/1966 | 5.20 | 7682.80 | USGS |
