Well NA04000714ACB
Confined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

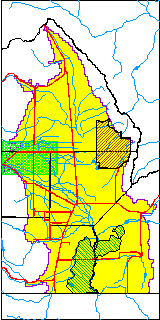

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04000714ACB
USGS Well ID374255106103001
USGS Station NameNA04000714ACB
USGS Construction Date01/01/1968
USGS Site TypeWell
USGS Site Use InformationWithdrawal of Water
USGS Groundwater Use InformationIrrigation
Data Source(s)USGS
Location Data
TRSNA04000714ACB
USGS TRS 1NA04000714ACB
USGS TRSNWSWNES014T0040NR0007EN
Longitude/Latitude (NAD83)-106.17558460 , 37.71527950
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.1755846 , 37.71527950
Easting, Northing RGDSS-NAD83 (US ft)54979.10 , 262273.52
USGS TopographyValley flat
USGS CountyRio Grande County
Elevation and Depth Data
Ground Elevation (ft NAVD88)7701.64
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7697.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7701.11
1-Arc Second NED Ground Elevation (ft NAVD88)7701.03
SRTM Ground Elevation (ft NAVD88)7706.35
Total Depth (ft)260.00
USGS Well Depth (ft)260.00
Model Layer3
Model Layer SourceWell Depth
Depth of Bottom of Layer 1108
Depth of Bottom of Layer 2207
Depth of Bottom of Layer 3295
Depth of Bottom of Layer 41942
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count4
Water-level Date Range02/24/1969 thru 01/22/1982
Monitored within the last 18 monthsNo, most recently on 01/22/1982
Depth-to-Water Range (ft)12.33 to 38.70
Water Table Elevation Range (ft NAVD88)7662.94 to 7689.31
Water-Level-Source:Number-of-MeasurementsUSGS:4

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
02/24/196914.107687.54USGS
02/17/197012.337689.31USGS
01/22/198133.807667.84USGS
01/22/198238.707662.94USGS

Top of Page
