Well NA04000802CBB3
Unconfined

Co-located Well(s):
NA04000802CBB2
NA04000802CBB4
NA04000802CBB5
NA04000802CBB6

Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

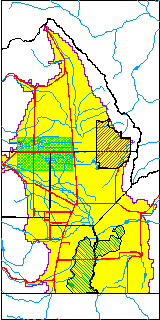

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04000802CBB3
USGS Well ID374423106042803
USGS Station NameNA04000802CBB3
USGS Construction Date11/07/2006
USGS Site TypeWell
USGS Site Use InformationUnknown
USGS Groundwater Use InformationUnknown
Data Source(s)USGS
Location Data
TRSNA04000802CBB3
USGS TRS 1NA04000802CBB3
USGS TRSNWNWSWS002T040N R08E N
Longitude/Latitude (NAD83)-106.07499720 , 37.73860000
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.0749972 , 37.73860000
Easting, Northing RGDSS-NAD83 (US ft)84104.98 , 270620.66
USGS CountyRio Grande County
USGS Map NameCENTER SOUTH
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7629.00
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NAVD88)7629.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7627.60
1-Arc Second NED Ground Elevation (ft NAVD88)7627.16
SRTM Ground Elevation (ft NAVD88)7634.81
Total Depth (ft)26.50
USGS Hole Depth (ft)42.00
USGS Well Depth (ft)26.50
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 1114
Depth of Bottom of Layer 2183
Depth of Bottom of Layer 3730
Depth of Bottom of Layer 42466
Additional Well InformationNONE
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary Aquifer112ALMS
USGS Hydrologic UnitSan Luis
USGS Data AvailableGeohydrologic
Water-level Database Information
Water-level Count3
Water-level Date Range07/24/2007 thru 08/06/2009
Monitored within the last 18 monthsNo, most recently on 08/06/2009
Depth-to-Water Range (ft)22.96 to 23.91
Water Table Elevation Range (ft NAVD88)7605.09 to 7606.04
Water-Level-Source:Number-of-MeasurementsUSGS:3

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
07/24/200723.907605.10USGS
07/23/200823.917605.09USGS
08/06/200922.967606.04USGS
