Well NA04101036DDD
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

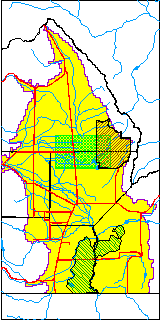

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04101036DDD
USGS Well ID374436105493301
GSDNP Well Name374436105493301
USGS Station NameNA04101036DDD
USGS Construction Date01/01/1946
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA04101036DDD
USGS TRS 1NA04101036DDD
USGS TRSSESESES036T0041NR0010EN
Longitude/Latitude (NAD83)-105.81918640 , 37.75083300
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-105.8191864 , 37.75083300
Easting, Northing RGDSS-NAD83 (US ft)158064.95 , 274852.20
USGS TopographyValley flat
USGS CountySaguache County
USGS Map NameHOOPER EAST
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7536.91
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7533.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7536.26
1-Arc Second NED Ground Elevation (ft NAVD88)7536.72
SRTM Ground Elevation (ft NAVD88)7545.93
Total Depth (ft)12.00
USGS Well Depth (ft)12.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 1100
Depth of Bottom of Layer 2285
Depth of Bottom of Layer 31488
Depth of Bottom of Layer 42684
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count180
Water-level Date Range04/02/1946 thru 01/16/1985
Monitored within the last 18 monthsNo, most recently on 01/16/1985
Depth-to-Water Range (ft)1.98 to 5.45
Water Table Elevation Range (ft NAVD88)7531.46 to 7534.93
Water-Level-Source:Number-of-MeasurementsUSGS:180

Top of Page


Water-level Data

1967 to Present

1934 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
04/02/19462.657534.26USGS
05/06/19462.617534.30USGS
06/11/19463.067533.85USGS
07/11/19463.617533.30USGS
10/08/19463.997532.92USGS
11/08/19463.337533.58USGS
12/03/19463.657533.26USGS
01/07/19473.307533.61USGS
02/03/19473.267533.65USGS
03/07/19473.007533.91USGS
04/04/19473.027533.89USGS
05/01/19472.807534.11USGS
06/02/19472.937533.98USGS
07/15/19473.627533.29USGS
08/18/19474.157532.76USGS
09/19/19474.107532.81USGS
10/17/19473.817533.10USGS
11/07/19473.577533.34USGS
12/12/19473.407533.51USGS
01/15/19483.317533.60USGS
02/25/19483.097533.82USGS
04/03/19482.597534.32USGS
04/29/19482.607534.31USGS
05/11/19482.807534.11USGS
06/17/19482.387534.53USGS
07/19/19483.017533.90USGS
08/04/19483.387533.53USGS
09/01/19483.877533.04USGS
10/20/19483.877533.04USGS
11/29/19483.607533.31USGS
12/22/19483.377533.54USGS
01/19/19493.467533.45USGS
02/25/19492.807534.11USGS
03/16/19492.847534.07USGS
04/25/19492.647534.27USGS
05/17/19492.597534.32USGS
06/16/19492.587534.33USGS
07/22/19492.447534.47USGS
08/26/19492.987533.93USGS
09/23/19493.317533.60USGS
10/21/19493.187533.73USGS
11/22/19493.037533.88USGS
12/14/19492.897534.02USGS
01/06/19502.967533.95USGS
02/06/19502.727534.19USGS
03/10/19502.507534.41USGS
04/12/19502.187534.73USGS
05/03/19502.447534.47USGS
06/07/19502.507534.41USGS
07/13/19503.317533.60USGS
08/15/19503.617533.30USGS
09/13/19503.907533.01USGS
10/19/19503.537533.38USGS
11/21/19503.237533.68USGS
12/12/19503.117533.80USGS
01/08/19513.077533.84USGS
02/14/19512.907534.01USGS
03/15/19512.667534.25USGS
04/11/19512.577534.34USGS
05/15/19512.757534.16USGS
06/14/19514.997531.92USGS
07/13/19513.327533.59USGS
08/14/19513.827533.09USGS
09/14/19514.127532.79USGS
10/15/19513.907533.01USGS
11/21/19513.587533.33USGS
12/10/19513.487533.43USGS
01/11/19523.387533.53USGS
02/07/19523.267533.65USGS
03/07/19523.087533.83USGS
04/08/19522.867534.05USGS
05/10/19522.787534.13USGS
06/11/19522.987533.93USGS
07/11/19523.217533.70USGS
08/05/19523.307533.61USGS
09/11/19523.737533.18USGS
10/10/19523.587533.33USGS
11/17/19523.247533.67USGS
12/12/19523.177533.74USGS
01/09/19533.147533.77USGS
02/11/19532.927533.99USGS
03/12/19532.747534.17USGS
04/09/19532.597534.32USGS
05/06/19532.657534.26USGS
06/03/19532.717534.20USGS
06/29/19533.267533.65USGS
07/27/19533.147533.77USGS
08/31/19533.427533.49USGS
09/30/19533.707533.21USGS
10/29/19533.317533.60USGS
11/27/19533.107533.81USGS
01/05/19543.217533.70USGS
01/27/19543.127533.79USGS
03/03/19542.757534.16USGS
03/25/19542.627534.29USGS
05/03/19542.637534.28USGS
06/07/19543.147533.77USGS
07/08/19543.637533.28USGS
08/04/19543.927532.99USGS
08/31/19544.107532.81USGS
10/04/19543.947532.97USGS
11/03/19543.597533.32USGS
12/06/19543.377533.54USGS
01/05/19553.337533.58USGS
02/07/19553.267533.65USGS
03/07/19553.087533.83USGS
04/04/19552.757534.16USGS
05/05/19552.837534.08USGS
06/03/19552.857534.06USGS
07/05/19553.407533.51USGS
08/02/19553.827533.09USGS
09/02/19554.027532.89USGS
10/06/19554.047532.87USGS
11/08/19553.707533.21USGS
12/02/19553.547533.37USGS
12/27/19553.457533.46USGS
02/06/19563.207533.71USGS
03/07/19563.157533.76USGS
04/03/19562.907534.01USGS
05/07/19563.007533.91USGS
06/05/19563.207533.71USGS
07/09/19563.907533.01USGS
08/14/19564.137532.78USGS
09/13/19564.297532.62USGS
10/15/19564.077532.84USGS
01/05/19573.587533.33USGS
03/04/19573.307533.61USGS
07/02/19573.407533.51USGS
09/30/19573.447533.47USGS
12/17/19573.227533.69USGS
03/25/19582.737534.18USGS
07/16/19583.997532.92USGS
09/28/19584.267532.65USGS
12/30/19582.947533.97USGS
03/16/19592.997533.92USGS
06/24/19593.377533.54USGS
10/08/19594.537532.38USGS
01/05/19603.157533.76USGS
06/22/19604.667532.25USGS
09/25/19605.227531.69USGS
12/23/19605.387531.53USGS
03/07/19613.177533.74USGS
07/03/19613.987532.93USGS
08/29/19614.007532.91USGS
03/16/19622.707534.21USGS
06/26/19622.607534.31USGS
08/29/19624.727532.19USGS
01/02/19633.477533.44USGS
04/03/19633.067533.85USGS
07/06/19631.987534.93USGS
09/01/19634.427532.49USGS
01/06/19643.707533.21USGS
04/02/19643.227533.69USGS
07/06/19643.737533.18USGS
10/01/19644.137532.78USGS
01/12/19663.437533.48USGS
05/11/19662.397534.52USGS
01/04/19673.437533.48USGS
03/31/19673.027533.89USGS
07/03/19673.437533.48USGS
10/03/19673.687533.23USGS
01/15/19683.007533.91USGS
04/01/19682.667534.25USGS
07/02/19683.647533.27USGS
10/03/19683.657533.26USGS
01/27/19693.107533.81USGS
04/01/19693.767533.15USGS
06/30/19692.767534.15USGS
09/24/19693.857533.06USGS
12/02/19693.067533.85USGS
12/07/19713.257533.66USGS
02/05/19733.307533.61USGS
01/14/19753.577533.34USGS
04/01/19754.587532.33USGS
01/23/19795.457531.46USGS
01/13/19814.107532.81USGS
01/20/19824.357532.56USGS
01/03/19834.397532.52USGS
01/16/19844.497532.42USGS
01/16/19854.077532.84USGS
