Well NA04100831CCC3
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

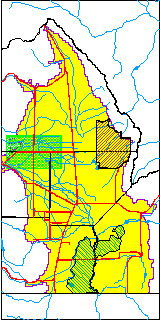

Index Map showing
model domain.

Green shaded area
enlarged below.

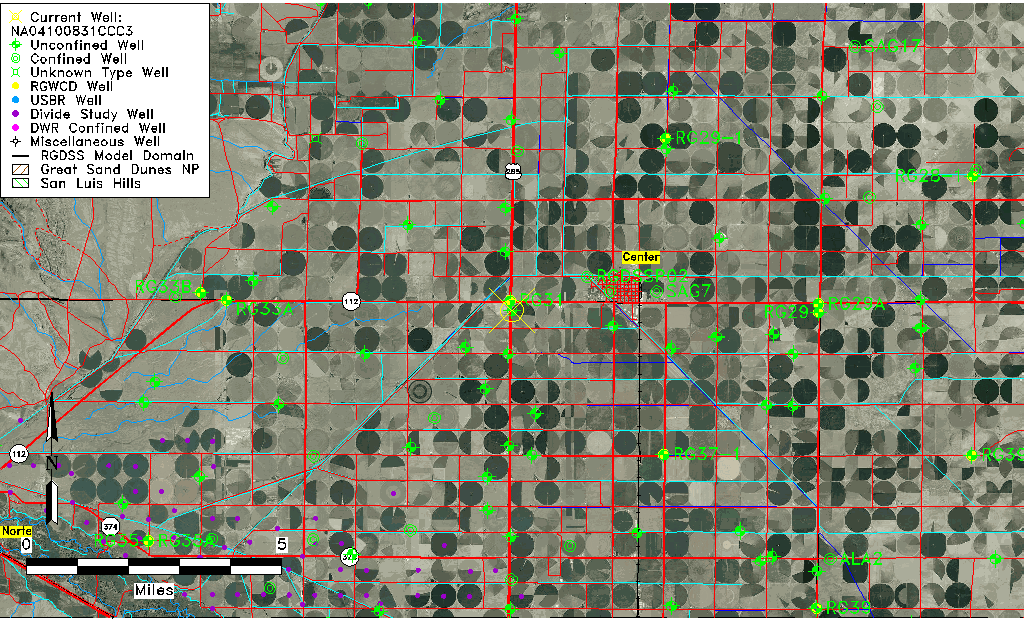

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04100831CCC3
USGS Well ID374445106085101
USGS Station NameNA04100831CCC3
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS
Location Data
TRSNA04100831CCC3
USGS TRS 1NA04100831CCC3
USGS TRSSWSWSWS031T0041NR0008EN
Longitude/Latitude (NAD83)-106.14808360 , 37.74583447
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.1480836 , 37.74583447
Easting, Northing RGDSS-NAD83 (US ft)62989.34 , 273354.72
USGS TopographyValley flat
USGS CountySaguache County
Elevation and Depth Data
Ground Elevation (ft NAVD88)7671.58
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NGVD29)7667.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7669.64
1-Arc Second NED Ground Elevation (ft NAVD88)7669.35
SRTM Ground Elevation (ft NAVD88)7673.87
Total Depth (ft)9.00
USGS Well Depth (ft)9.00
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 1117
Depth of Bottom of Layer 2239
Depth of Bottom of Layer 3527
Depth of Bottom of Layer 42266
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary AquiferCenozoic Erathem
USGS Hydrologic UnitSan Luis
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count17
Water-level Date Range01/05/1967 thru 01/13/1981
Monitored within the last 18 monthsNo, most recently on 01/13/1981
Depth-to-Water Range (ft)3.12 to 8.30
Water Table Elevation Range (ft NAVD88)7663.28 to 7668.46
Water-Level-Source:Number-of-MeasurementsUSGS:17

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/05/19675.907665.68USGS
04/03/19676.717664.87USGS
07/03/19675.937665.65USGS
10/06/19677.077664.51USGS
01/16/19686.657664.93USGS
04/01/19688.307663.28USGS
07/02/19686.887664.70USGS
10/03/19684.567667.02USGS
01/28/19694.617666.97USGS
12/03/19693.127668.46USGS
12/07/19715.277666.31USGS
05/07/19737.937663.65USGS
02/19/19745.947665.64USGS
01/14/19757.867663.72USGS
01/05/19766.497665.09USGS
01/18/19807.547664.04USGS
01/13/19817.957663.63USGS
