Well NA04100907CCC | ||
Home | Well Information | Hydrograph | Water Level Data Table
|
![]() |

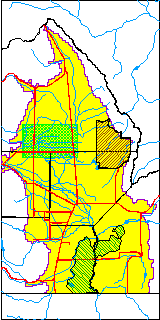

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA04100907CCC |
USGS Well ID | 374825106021301 |
USGS Station Name | NA04100907CCC |
USGS Construction Date | 08/11/1993 |
USGS Site Type | Well |
USGS Site Use Information | Observation |
USGS Groundwater Use Information | Unused |
Data Source(s) | USGS |
Location Data | |
TRS | NA04100907CCC |
USGS TRS 1 | NA04100907CCC |
USGS TRS | SWSWSWS 7T 41NR 9E |
Longitude/Latitude (NAD83) | -106.03771940 , 37.80707220 |
Longitude/Latitude Data Source | GWSI decimal LAT/LONG field |
USGS Longitude/Latitude (NAD83) | -106.0377194 , 37.80707220 |
Easting, Northing RGDSS-NAD83 (US ft) | 94980.88 , 295502.12 |
USGS Topography | Valley flat |
USGS County | Saguache County |
USGS Map Name | CENTER NORTH |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7593.00 |
Elevation Data Source | USGS GWSI database |
USGS Ground Elevation (ft NAVD88) | 7593.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7591.08 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7588.79 |
SRTM Ground Elevation (ft NAVD88) | 7595.14 |
Total Depth (ft) | 19.70 |
USGS Hole Depth (ft) | 20.35 |
USGS Well Depth (ft) | 19.70 |
Model Layer | 1 |
Model Layer Source | Well Depth |
Depth of Bottom of Layer 1 | 92 |
Depth of Bottom of Layer 2 | 142 |
Depth of Bottom of Layer 3 | 1024 |
Depth of Bottom of Layer 4 | 2426 |
Additional Well Information | Logs, Geohydrology, Construction |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | TD Elevation/Model Layer |
USGS Primary Aquifer | 112ALMS |
USGS Aquifer Type | Unconfined Single Aquifer |
USGS Hydrologic Unit | San Luis |
USGS Data Available | Water-level (GW.LEV) |
Water-level Database Information | |
Water-level Count | 17 |
Water-level Date Range | 08/31/1993 thru 05/04/2004 |
Monitored within the last 18 months | No, most recently on 05/04/2004 |
Depth-to-Water Range (ft) | 3.90 to 16.32 |
Water Table Elevation Range (ft NAVD88) | 7576.68 to 7589.10 |
Water-Level-Source:Number-of-Measurements | USGS:17 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
08/31/1993 | 9.54 | 7583.46 | USGS |
05/03/1994 | 5.99 | 7587.01 | USGS |
07/05/1994 | 5.44 | 7587.56 | USGS |
07/08/1994 | 5.44 | 7587.56 | USGS |
08/09/1994 | 8.29 | 7584.71 | USGS |
09/20/1994 | 8.85 | 7584.15 | USGS |
04/05/1995 | 6.34 | 7586.66 | USGS |
07/11/1995 | 4.54 | 7588.46 | USGS |
08/09/1995 | 3.90 | 7589.10 | USGS |
09/20/1995 | 6.78 | 7586.22 | USGS |
11/29/1995 | 6.70 | 7586.30 | USGS |
04/02/1996 | 5.60 | 7587.40 | USGS |
07/23/1996 | 10.25 | 7582.75 | USGS |
08/28/1996 | 10.76 | 7582.24 | USGS |
09/23/1996 | 10.13 | 7582.87 | USGS |
07/26/2000 | 11.31 | 7581.69 | USGS |
05/04/2004 | 16.32 | 7576.68 | USGS |
