Well NA04100907CCC2
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

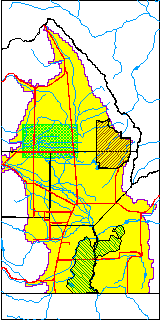

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04100907CCC2
USGS Well ID374825106021302
USGS Station NameNA04100907CCC2
USGS Construction Date11/02/2006
USGS Site TypeWell
USGS Site Use InformationUnknown
USGS Groundwater Use InformationUnknown
Data Source(s)USGS
Location Data
TRSNA04100907CCC2
USGS TRS 1NA04100907CCC2
USGS TRSSWSWSWS7 T41N R9E N
Longitude/Latitude (NAD83)-106.03768060 , 37.80703330
Longitude/Latitude Data SourceGWSI decimal LAT/LONG field
USGS Longitude/Latitude (NAD83)-106.0376806 , 37.80703330
Easting, Northing RGDSS-NAD83 (US ft)94992.03 , 295487.92
USGS CountySaguache County
USGS Map NameCENTER NORTH
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7593.00
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NAVD88)7593.00
1/3-Arc Second NED Ground Elevation (ft NAVD88)7591.39
1-Arc Second NED Ground Elevation (ft NAVD88)7588.25
SRTM Ground Elevation (ft NAVD88)7595.14
Total Depth (ft)36.40
USGS Hole Depth (ft)41.00
USGS Well Depth (ft)36.40
Model Layer1
Model Layer SourceWell Depth
Depth of Bottom of Layer 192
Depth of Bottom of Layer 2142
Depth of Bottom of Layer 31025
Depth of Bottom of Layer 42427
Additional Well InformationNONE
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceTD Elevation/Model Layer
USGS Primary Aquifer112ALMS
USGS Hydrologic UnitSan Luis
USGS Data AvailableGeohydrologic
Water-level Database Information
Water-level Count11
Water-level Date Range11/02/2006 thru 07/26/2012
Monitored within the last 18 monthsNo, most recently on 07/26/2012
Depth-to-Water Range (ft)21.69 to 30.22
Water Table Elevation Range (ft NAVD88)7562.78 to 7571.31
Water-Level-Source:Number-of-MeasurementsUSGS:11

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
11/02/200624.347568.66USGS
05/04/200721.697571.31USGS
07/26/200726.537566.47USGS
08/24/200726.417566.59USGS
12/03/200723.167569.84USGS
12/06/200723.077569.93USGS
07/22/200825.027567.98USGS
08/06/200925.077567.93USGS
08/07/201026.037566.97USGS
07/28/201130.227562.78USGS
07/26/201228.647564.36USGS
