Well NA04200927AAD1 EW-58U (EW58U)
Unconfined

Co-located Well(s):
NA04200927AAD2 EW-58C-1 (EW58C1)
NA04200927AAD3 EW-58C-2 (EW58C2)

Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

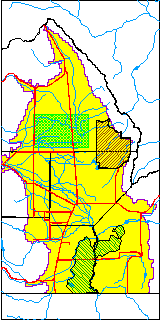

Index Map showing
model domain.

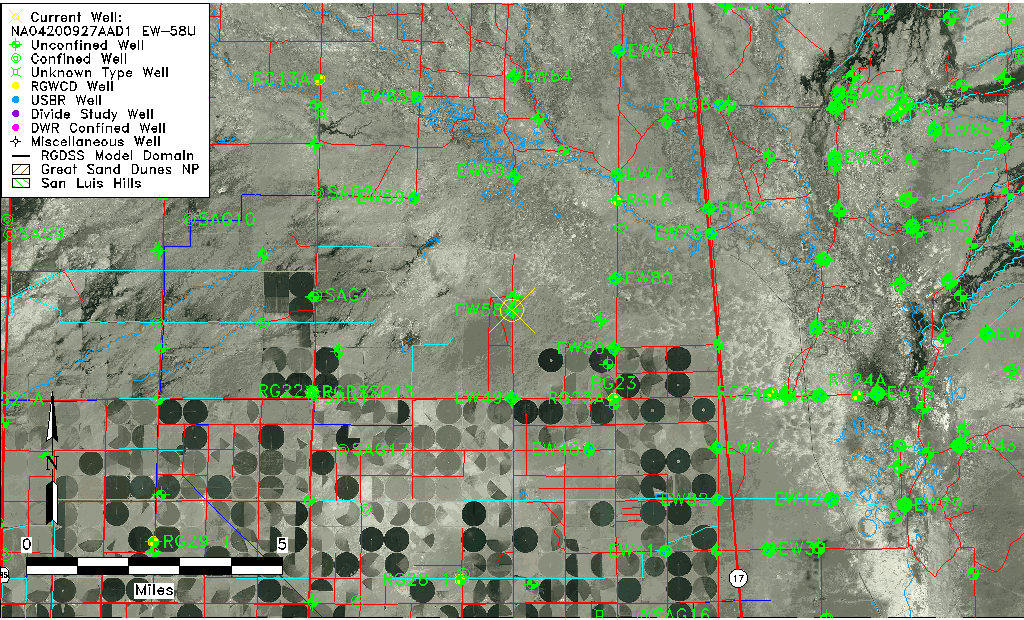

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04200927AAD1 EW-58U
USBR Well IDEW58U
USGS Well ID375143105575301
USGS Station NameNA04200927AAD1 EW-58U
USGS Construction Date06/28/1983
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnused
Data Source(s)USGS, USBR
Location Data
TRSNA04200927AAD1 EW-58U
USBR TRSNA04200927AAD1
USGS TRS 1NA04200927AAD1 EW-58U
Longitude/Latitude (NAD83)-105.96548881 , 37.86100046
Longitude/Latitude Data SourceUSBOR EW well locations
USGS Longitude/Latitude (NAD83)-105.9652979 , 37.86194397
USBR Longitude/Latitude (NAD27)-105.964913059271 , 37.8610009365042
Easting, Northing RGDSS-NAD83 (US ft)115906.14 , 315058.93
USGS TopographyValley flat
USGS CountySaguache County
USGS Map NameDEADMAN CAMP SW
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7555.32
Elevation Data SourceUSBOR EW well database
USBR Ground Elevation (ft NGVD29)7551.4
USGS Ground Elevation (ft NGVD29)7551.40
1/3-Arc Second NED Ground Elevation (ft NAVD88)7555.97
1-Arc Second NED Ground Elevation (ft NAVD88)7555.10
SRTM Ground Elevation (ft NAVD88)7564.51
Total Depth (ft)45.00
USBR Total Depth (ft)45
USGS Hole Depth (ft)120.00
USGS Well Depth (ft)42.50
Model Layer1
Model Layer SourceAquifer Type
Depth of Bottom of Layer 192
Depth of Bottom of Layer 2168
Depth of Bottom of Layer 3827
Depth of Bottom of Layer 42818
Additional Well InformationConstruction
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceEW_AQFR
USGS Hydrologic UnitSaguache
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count472
Water-level Date Range10/19/1983 thru 09/11/2024
Monitored within the last 18 monthsYes, most recently on 09/11/2024
Depth-to-Water Range (ft)5.28 to 17.98
Water Table Elevation Range (ft NAVD88)7537.34 to 7550.04
Water-Level-Source:Number-of-MeasurementsUSGS:209 USBR:296

Top of Page


Water-level Data

2019 to Present

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
10/19/19835.447549.88USBR
11/30/19835.507549.82USBR
12/14/19835.507549.82USBR
01/16/19845.507549.82USBR
02/16/19845.507549.82USBR
03/14/19845.607549.72USBR
04/16/19845.507549.82USBR
05/21/19845.407549.92USBR
06/22/19845.287550.04USBR
06/28/19845.287550.04USGS
07/01/19845.287550.04USGS
07/07/19845.307550.02USGS
07/09/19845.307550.02USBR
07/14/19845.327550.00USGS
07/21/19845.357549.97USGS
07/28/19845.377549.95USGS
08/21/19845.427549.90USGS
08/24/19845.437549.89USBR
08/26/19845.437549.89USGS
09/18/19845.497549.83USGS
09/19/19845.497549.83USBR
09/21/19845.497549.83USGS
09/28/19845.507549.82USGS
10/01/19845.817549.51USGS
10/07/19845.827549.50USGS
10/14/19845.837549.49USGS
10/16/19845.837549.49USBR
10/21/19845.857549.47USGS
10/28/19845.867549.46USGS
11/01/19845.867549.46USGS
11/07/19845.877549.45USGS
11/13/19845.887549.44USBR
11/14/19845.887549.44USGS
11/21/19845.887549.44USGS
11/28/19845.897549.43USGS
12/01/19845.897549.43USGS
12/07/19845.897549.43USGS
12/14/19845.907549.42USGS
12/18/19845.917549.41USBR
12/21/19845.917549.41USGS
12/28/19845.907549.42USGS
01/01/19855.907549.42USGS
01/07/19855.897549.43USGS
01/14/19855.907549.42USGS
01/21/19855.897549.43USGS
01/24/19855.897549.43USBR
01/28/19855.907549.42USGS
02/01/19855.907549.42USGS
02/07/19855.907549.42USGS
02/14/19855.907549.42USGS
02/21/19855.907549.42USGS
02/27/19855.887549.44USBR
02/28/19855.857549.47USGS
03/01/19855.857549.47USGS
03/07/19855.847549.48USGS
03/14/19855.837549.49USGS
03/21/19855.827549.50USGS
03/27/19855.817549.51USBR
03/28/19855.817549.51USGS
04/01/19855.807549.52USGS
04/07/19855.777549.55USGS
04/14/19855.757549.57USGS
04/21/19855.727549.60USGS
04/25/19855.707549.62USBR
04/28/19855.707549.62USGS
05/01/19855.697549.63USGS
05/07/19855.687549.64USGS
05/14/19855.667549.66USGS
05/21/19855.657549.67USGS
05/28/19855.657549.67USGS
05/31/19855.657549.67USBR
06/01/19855.657549.67USGS
06/07/19855.657549.67USGS
06/14/19855.767549.56USGS
06/21/19855.717549.61USGS
06/28/19855.767549.56USGS
07/01/19855.797549.53USGS
07/02/19855.797549.53USBR
07/07/19855.837549.49USGS
07/14/19855.877549.45USGS
07/21/19855.897549.43USGS
07/28/19855.917549.41USGS
08/01/19855.917549.41USGS
08/07/19855.927549.40USGS,USBR
08/14/19855.937549.39USGS
08/21/19855.957549.37USGS
08/28/19855.967549.36USGS
09/01/19855.977549.35USGS
09/04/19855.987549.34USBR
09/07/19855.987549.34USGS
09/14/19856.017549.31USGS
09/21/19856.027549.30USGS
09/28/19856.037549.29USGS
10/01/19856.047549.28USGS
10/07/19856.057549.27USGS
10/10/19856.067549.26USBR
10/14/19856.067549.26USGS
10/21/19856.057549.27USGS
10/28/19856.077549.25USGS
11/01/19856.077549.25USGS
11/07/19856.087549.24USGS
11/12/19856.087549.24USGS,USBR
12/11/19856.117549.21USGS,USBR
12/14/19856.117549.21USGS
12/21/19856.117549.21USGS
12/28/19856.117549.21USGS
01/01/19866.117549.21USGS
01/07/19866.117549.21USGS
01/14/19866.127549.20USGS
01/21/19866.127549.20USGS
01/22/19866.127549.20USBR
01/28/19866.137549.19USGS
02/01/19866.137549.19USGS
02/07/19866.137549.19USGS
02/14/19866.137549.19USGS
02/19/19866.137549.19USBR
02/21/19866.127549.20USGS
02/28/19866.117549.21USGS
03/01/19866.117549.21USGS
03/07/19866.097549.23USGS
03/09/19866.097549.23USGS
03/17/19866.067549.26USBR
03/21/19866.067549.26USGS
03/28/19866.047549.28USGS
03/30/19866.037549.29USGS
04/25/19865.977549.35USGS,USBR
04/28/19865.977549.35USGS
05/01/19865.977549.35USGS
05/07/19865.967549.36USGS
05/14/19865.967549.36USGS
05/21/19865.977549.35USGS,USBR
05/28/19865.987549.34USGS
06/01/19865.997549.33USGS
06/07/19866.007549.32USGS
06/14/19866.027549.30USGS
06/18/19866.037549.29USBR
06/21/19866.057549.27USGS
06/28/19866.087549.24USGS
07/01/19866.097549.23USGS
07/07/19866.117549.21USGS
07/14/19866.127549.20USGS
07/21/19866.137549.19USGS
07/23/19866.147549.18USBR
07/28/19866.147549.18USGS
08/01/19866.157549.17USGS
08/07/19866.167549.16USGS
08/14/19866.177549.15USGS
08/20/19866.187549.14USBR
08/21/19866.187549.14USGS
08/28/19866.197549.13USGS
09/01/19866.197549.13USGS
09/07/19866.207549.12USGS
09/14/19866.217549.11USGS
09/21/19866.217549.11USGS
09/28/19866.227549.10USGS
10/01/19866.227549.10USGS
10/07/19866.227549.10USGS,USBR
10/14/19866.237549.09USGS
11/07/19866.187549.14USGS
11/14/19866.177549.15USGS
11/28/19866.127549.20USGS
12/01/19866.117549.21USGS
12/03/19866.117549.21USBR
12/07/19866.097549.23USGS
12/21/19866.057549.27USGS
12/28/19866.037549.29USGS
01/01/19876.037549.29USGS
01/07/19876.027549.30USGS
01/14/19876.017549.31USGS
01/21/19876.017549.31USGS
01/22/19876.007549.32USBR
01/28/19876.007549.32USGS
02/01/19876.007549.32USGS
02/04/19875.997549.33USBR
02/07/19875.997549.33USGS
02/14/19875.987549.34USGS
02/21/19875.987549.34USGS
02/28/19875.977549.35USGS
03/07/19875.967549.36USGS
03/14/19875.887549.44USGS
03/21/19875.827549.50USGS
03/28/19875.787549.54USGS
04/01/19875.767549.56USGS
04/07/19875.727549.60USGS
04/14/19875.687549.64USGS
04/15/19875.677549.65USBR
04/21/19875.647549.68USGS
04/28/19875.607549.72USGS
05/01/19875.597549.73USGS
05/07/19875.577549.75USGS
05/14/19875.547549.78USGS
05/21/19875.527549.80USGS,USBR
05/28/19875.507549.82USGS
06/01/19875.507549.82USGS
06/07/19875.517549.81USGS
06/14/19875.537549.79USGS
06/21/19875.547549.78USGS
06/24/19875.567549.76USBR
06/28/19875.597549.73USGS
07/01/19875.607549.72USGS
07/07/19875.657549.67USGS
07/14/19875.717549.61USGS
07/15/19875.717549.61USBR
07/21/19875.757549.57USGS
07/28/19875.797549.53USGS
08/01/19875.817549.51USGS
08/07/19875.837549.49USGS
08/14/19875.877549.45USGS
08/19/19875.907549.42USBR
08/21/19875.907549.42USGS
08/28/19875.947549.38USGS
09/01/19875.967549.36USGS
09/07/19875.997549.33USGS
09/14/19876.017549.31USGS
09/21/19876.047549.28USGS
09/28/19876.077549.25USGS
09/30/19875.967549.36USBR
12/14/19876.077549.25USGS
12/29/19876.237549.09USBR
02/25/19886.167549.16USBR
03/17/19886.127549.20USBR
05/25/19885.897549.43USBR
06/15/19885.917549.41USBR
07/15/19886.047549.28USBR
08/15/19886.207549.12USBR
10/15/19886.317549.01USBR
11/02/19886.337548.99USBR
12/15/19886.327549.00USBR
02/15/19896.277549.05USBR
03/15/19896.197549.13USBR
04/15/19896.107549.22USBR
05/15/19896.067549.26USBR
06/15/19896.137549.19USBR
07/15/19896.337548.99USBR
08/15/19896.417548.91USBR
09/15/19896.477548.85USBR
10/15/19896.527548.80USBR
11/15/19896.587548.74USBR
12/15/19896.617548.71USBR
01/15/19906.657548.67USBR
02/15/19906.697548.63USBR
03/15/19906.627548.70USBR
04/15/19906.557548.77USBR
05/15/19906.427548.90USBR
06/20/19906.457548.87USBR
07/15/19906.617548.71USBR
08/15/19906.757548.57USBR
09/15/19906.847548.48USBR
10/15/19906.877548.45USBR
11/15/19906.917548.41USBR
12/15/19906.927548.40USBR
01/15/19916.887548.44USBR
02/15/19916.827548.50USBR
03/15/19916.717548.61USBR
04/15/19916.637548.69USBR
05/15/19916.557548.77USBR
06/15/19916.497548.83USBR
07/15/19916.647548.68USBR
08/15/19916.797548.53USBR
09/15/19916.897548.43USBR
10/16/19916.887548.44USBR
11/15/19916.837548.49USBR
12/15/19916.807548.52USBR
01/15/19926.737548.59USBR
02/15/19926.667548.66USBR
03/15/19926.617548.71USBR
04/15/19926.387548.94USBR
05/15/19926.197549.13USBR
06/15/19926.197549.13USBR
07/15/19926.367548.96USBR
08/15/19926.537548.79USBR
09/15/19926.567548.76USBR
10/15/19926.647548.68USBR
11/15/19926.697548.63USBR
12/15/19926.697548.63USBR
01/15/19936.707548.62USBR
02/15/19936.677548.65USBR
03/05/19936.677548.65USBR
04/15/19936.487548.84USBR
05/15/19936.517548.81USBR
06/15/19936.667548.66USBR
07/15/19936.857548.47USBR
08/15/19937.087548.24USBR
09/15/19937.227548.10USBR
10/15/19937.407547.92USBR
11/15/19937.487547.84USBR
12/15/19937.617547.71USBR
01/15/19947.747547.58USBR
02/15/19947.867547.46USBR
03/15/19947.967547.36USBR
04/15/19947.897547.43USBR
05/15/19947.757547.57USBR
06/15/19947.727547.60USBR
07/27/19947.927547.40USBR
08/15/19947.937547.39USBR
09/15/19948.097547.23USBR
10/20/19948.277547.05USGS,USBR
12/12/19948.257547.07USBR
01/25/19958.457546.87USGS,USBR
02/15/19958.667546.66USBR
03/15/19958.627546.70USBR
04/26/19958.547546.78USGS,USBR
05/15/19958.447546.88USBR
06/15/19958.407546.92USBR
07/26/19958.407546.92USGS,USBR
08/15/19958.427546.90USBR
09/15/19958.517546.81USBR
10/25/19958.727546.60USGS,USBR
11/15/19958.817546.51USBR
12/15/19958.947546.38USBR
01/15/19968.977546.35USBR
02/15/19969.047546.28USGS,USBR
03/15/19969.157546.17USBR
04/24/19969.177546.15USGS,USBR
06/03/19969.167546.16USBR
07/03/19969.287546.04USBR
08/02/19969.397545.93USGS,USBR
08/28/19969.497545.83USBR
09/15/19969.487545.84USBR
10/15/19969.457545.87USBR
11/15/19969.467545.86USBR
12/15/19969.497545.83USBR
02/05/19979.747545.58USGS,USBR
03/15/19979.877545.45USBR
04/15/19979.917545.41USBR
04/30/199710.037545.29USBR
05/15/19979.957545.37USBR
06/10/199710.087545.24USBR
06/25/199710.137545.19USGS,USBR
09/05/199710.477544.85USBR
09/17/199710.567544.76USBR
01/13/199811.097544.23USGS,USBR
02/05/199811.187544.14USBR
03/17/199811.357543.97USBR
04/20/199811.407543.92USBR
05/15/199811.437543.89USBR
06/15/199811.507543.82USBR
07/01/199811.577543.75USGS,USBR
07/07/199811.637543.69USBR
08/15/199811.717543.61USBR
09/15/199811.817543.51USBR
10/15/199811.997543.33USBR
11/06/199812.057543.27USBR
11/15/199812.047543.28USBR
12/15/199812.037543.29USBR
01/14/199911.957543.37USGS,USBR
03/15/199911.957543.37USBR
04/21/199912.017543.31USBR
05/15/199912.097543.23USBR
06/15/199912.147543.18USBR
07/27/199912.117543.21USGS,USBR
01/11/200012.327543.00USBR
02/04/200012.357542.97USGS,USBR
04/13/200012.327543.00USBR
07/06/200012.247543.08USBR
07/19/200012.267543.06USGS,USBR
09/22/200012.167543.16USBR
10/26/200012.067543.26USGS
12/05/200011.987543.34USBR
01/10/200111.967543.36USBR
02/08/200111.957543.37USGS,USBR
03/26/200112.117543.21USBR
05/01/200112.217543.11USGS,USBR
06/26/200112.337542.99USBR
07/25/200112.387542.94USGS,USBR
10/22/200112.577542.75USBR
10/24/200112.567542.76USGS,USBR
01/22/200212.697542.63USBR
02/14/200212.737542.59USGS,USBR
04/17/200212.827542.50USBR
06/19/200212.867542.46USBR
08/14/200212.997542.33USGS,USBR
09/05/200213.067542.26USBR
11/12/200213.007542.32USBR
12/16/200212.887542.44USBR
02/11/200312.737542.59USBR
02/21/200312.697542.63USGS,USBR
04/28/200312.547542.78USBR
05/14/200312.497542.83USBR
06/25/200312.467542.86USBR
08/04/200312.547542.78USBR
08/07/200312.537542.79USGS,USBR
11/24/200312.507542.82USBR
01/28/200412.487542.84USBR
02/15/200412.477542.85USBR
03/15/200412.467542.86USBR
04/22/200412.437542.89USBR
05/15/200412.377542.95USBR
06/15/200412.347542.98USBR
07/09/200412.387542.94USBR
08/15/200412.487542.84USBR
08/18/200412.487542.84USGS
09/15/200412.547542.78USBR
10/19/200412.557542.77USBR
11/15/200412.567542.76USBR
12/15/200412.577542.75USBR
01/13/200512.597542.73USBR
03/08/200512.587542.74USGS,USBR
06/14/200512.357542.97USBR
08/24/200512.527542.80USGS,USBR
08/31/200512.547542.78USBR
12/05/200512.667542.66USBR
02/14/200612.687542.64USBR
05/09/200612.647542.68USBR
08/29/200612.827542.50USBR
10/23/200612.887542.44USBR
02/07/200712.947542.38USBR
08/15/200713.007542.32USBR
12/26/200713.077542.25USBR
03/26/200813.057542.27USBR
06/11/200812.927542.40USBR
08/05/200813.087542.24USBR
10/16/200813.147542.18USBR
02/10/200913.157542.17USBR
04/07/200913.107542.22USBR
07/08/200913.037542.29USBR
10/27/200913.147542.18USBR
02/03/201013.187542.14USBR
04/28/201013.167542.16USBR
07/28/201013.177542.15USBR
10/27/201013.307542.02USBR
01/31/201113.387541.94USBR
04/27/201113.437541.89USBR
07/25/201113.607541.72USBR
10/25/201113.817541.51USBR
01/30/201213.977541.35USBR
04/10/201214.107541.22USBR
06/25/201214.207541.12USBR
10/11/201214.447540.88USBR
01/24/201314.617540.71USBR
05/23/201314.777540.55USBR
08/29/201314.967540.36USBR
12/12/201315.117540.21USBR
03/31/201415.237540.09USBR
06/30/201415.317540.01USBR
10/07/201415.457539.87USBR
01/23/201515.507539.82USBR
06/10/201515.497539.83USBR
07/28/201515.527539.80USBR
10/20/201515.447539.88USBR
12/29/201515.337539.99USBR
03/21/201615.317540.01USBR
06/20/201615.247540.08USBR
09/27/201615.427539.90USBR
12/28/201615.477539.85USBR
03/21/201715.507539.82USBR
06/21/201715.537539.79USBR
09/21/201715.637539.69USBR
12/28/201715.657539.67USBR
04/04/201815.657539.67USBR
10/01/201815.877539.45USBR
04/29/201916.037539.29USBR
07/02/201916.087539.24USBR
10/09/201916.237539.09USBR
03/10/202016.327539.00USBR
06/16/202016.347538.98USBR
09/29/202016.447538.88USBR
12/15/202016.517538.81USBR
03/30/202116.617538.71USBR
08/25/202116.757538.57USBR
11/23/202116.827538.50USBR
02/22/202216.917538.41USBR
06/15/202217.027538.30USBR
09/19/202217.147538.18USBR
12/19/202217.247538.08USBR
03/29/202317.387537.94USBR
06/21/202317.477537.85USBR
09/26/202317.597537.73USBR
12/06/202317.657537.67USBR
03/15/202417.787537.54USBR
06/04/202417.877537.45USBR
09/11/202417.987537.34USBR

Top of Page
