Well NA04200910DAA1 EW-60U (EW60U) | ||
Co-located Well(s):
NA04200910DAA2 EW-60C (EW60C) |
Home | Well Information | Hydrograph | Water Level Data Table
|

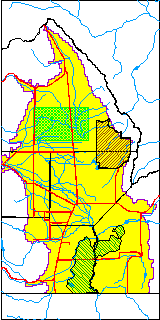

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | NA04200910DAA1 EW-60U |
USBR Well ID | EW60U |
USGS Well ID | 375356105575401 |
USGS Station Name | NA04200910DAA1 EW-60U |
USGS Construction Date | 07/01/1983 |
USGS Site Type | Well |
USGS Site Use Information | Observation |
USGS Groundwater Use Information | Unused |
Data Source(s) | USGS, USBR |
Location Data | |
TRS | NA04200910DAA1 EW-60U |
USBR TRS | NA04200910DAA1 |
USGS TRS 1 | NA04200910DAA1 EW-60U |
Longitude/Latitude (NAD83) | -105.96491187 , 37.89895983 |
Longitude/Latitude Data Source | USBOR EW well locations |
USGS Longitude/Latitude (NAD83) | -105.9655748 , 37.89888838 |
USBR Longitude/Latitude (NAD27) | -105.964337046103 , 37.8989603393633 |
Easting, Northing RGDSS-NAD83 (US ft) | 116117.13 , 328877.06 |
USGS Topography | Valley flat |
USGS County | Saguache County |
USGS Map Name | MOFFAT SOUTH |
USGS Map Scale | 24000 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7548.90 |
Elevation Data Source | USBOR EW well database |
USBR Ground Elevation (ft NGVD29) | 7545.0 |
USGS Ground Elevation (ft NGVD29) | 7545.00 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7549.42 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7549.00 |
SRTM Ground Elevation (ft NAVD88) | 7556.82 |
Total Depth (ft) | 45.00 |
USBR Total Depth (ft) | 45 |
USGS Hole Depth (ft) | 128.00 |
USGS Well Depth (ft) | 42.50 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 87 |
Depth of Bottom of Layer 2 | 142 |
Depth of Bottom of Layer 3 | 595 |
Depth of Bottom of Layer 4 | 2706 |
Additional Well Information | Construction |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | EW_AQFR |
USGS Hydrologic Unit | Saguache |
USGS Data Available | Water-level (GW.LEV) |
Water-level Database Information | |
Water-level Count | 619 |
Water-level Date Range | 10/17/1983 thru 09/15/2024 |
Monitored within the last 18 months | Yes, most recently on 09/15/2024 |
Depth-to-Water Range (ft) | -0.61 to 7.80 |
Water Table Elevation Range (ft NAVD88) | 7541.10 to 7549.51 |
Water-Level-Source:Number-of-Measurements | USGS:209 USBR:415 |
