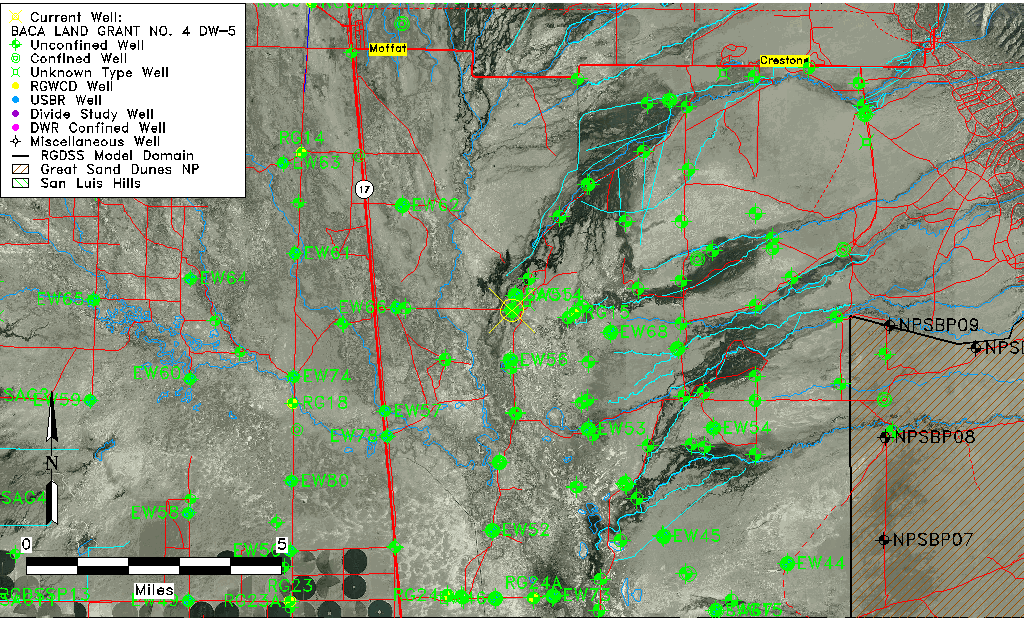

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDBACA LAND GRANT NO. 4 DW-5
Baca Well NameDW-5
USGS Well ID375507105505901
GSDNP Well NameDW-5
USGS Station NameBACA LAND GRANT NO. 4 DW-5
USGS Construction Date12/21/1995
USGS Site TypeWell
USGS Site Use InformationObservation
USGS Groundwater Use InformationUnknown
Data Source(s)USGS, HRS
Location Data
TRSBACA LAND GRANT NO. 4 DW-5
USGS TRS 1BACA LAND GRANT NO. 4 DW-5
Longitude/Latitude (NAD83)-105.84977324 , 37.91869917
Longitude/Latitude Data SourceDavis Engineering Survey
USGS Longitude/Latitude (NAD83)-105.8496667 , 37.91860000
Halapaska & Assoc. Easting/Northing (CO-S)1899295.00000000 , 456034.000000000
Easting, Northing RGDSS-NAD83 (US ft)149344.88 , 335976.29
USGS CountySaguache County
USGS Map NameSHEDS CAMP
USGS Map Scale24000
Elevation and Depth Data
Ground Elevation (ft NAVD88)7542.62
Elevation Data SourceUSGS GWSI database
USGS Ground Elevation (ft NAVD88)7542.62
BACA Well database (Halapaska & Assoc, ft NGVD29)7540
HRS Dunes Well database (ft NGVD29)7540.00000
1/3-Arc Second NED Ground Elevation (ft NAVD88)7544.14
1-Arc Second NED Ground Elevation (ft NAVD88)7543.93
SRTM Ground Elevation (ft NAVD88)7555.52
Total Depth (ft)988.00
USGS Hole Depth (ft)1013.00
USGS Well Depth (ft)988.00
Model Layer3
Model Layer SourceDunes Layer
Depth of Bottom of Layer 185
Depth of Bottom of Layer 2240
Depth of Bottom of Layer 31437
Depth of Bottom of Layer 45006
Additional Well InformationNONE
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceHRS_AQUIFER
USGS Primary AquiferValley-fill Deposits
USGS Aquifer TypeConfined Multiple Aquifers
USGS Hydrologic UnitSan Luis
USGS Data AvailableDischarge (GW.DISC)
Water-level Database Information
Water-level Count169
Water-level Date Range01/30/1996 thru 10/29/2024
Monitored within the last 18 monthsYes, most recently on 10/29/2024
Depth-to-Water Range (ft)-196.70 to -26.50
Water Table Elevation Range (ft NAVD88)7569.12 to 7739.32
Water-Level-Source:Number-of-MeasurementsRGWCD:60 USGS:120 HRS:3

Top of Page


Water-level Data

2019 to Present

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/30/1996-32.307574.92HRS
06/29/1996-50.807593.42HRS
09/18/1996-26.507569.12HRS
04/19/2005-76.267618.88USGS
06/13/2005-123.407666.02USGS
07/25/2005-96.407639.02USGS
11/22/2005-117.547660.16USGS
03/01/2006-95.227637.84USGS
03/29/2006-119.997662.61USGS
04/26/2006-127.247669.86USGS
10/20/2006-122.437665.05USGS
12/15/2006-114.957657.57USGS
02/16/2007-108.267650.88USGS
04/12/2007-118.267660.88USGS
07/10/2007-150.347692.96USGS
08/08/2007-130.957673.57USGS
10/10/2007-98.667641.28USGS
12/06/2007-105.217647.83USGS
02/13/2008-104.807647.42USGS
04/08/2008-118.157660.77USGS
06/03/2008-118.377660.99USGS
10/08/2008-94.307636.92USGS
02/24/2009-188.417731.03USGS
04/21/2009-196.707739.32USGS
06/23/2009-135.937678.55USGS
08/11/2009-150.357692.97USGS
10/06/2009-155.787698.40USGS
12/01/2009-144.207686.82USGS
02/04/2010-134.537677.15USGS
04/06/2010-135.357677.97USGS
08/04/2010-138.477681.09USGS
10/13/2010-136.617679.23USGS
12/10/2010-135.277677.89USGS
02/16/2011-137.427680.04USGS
04/08/2011-140.857683.47USGS
06/01/2011-139.747682.36USGS
07/13/2011-134.667677.28USGS
09/15/2011-142.257684.87USGS
12/12/2011-137.187679.80USGS
02/02/2012-142.437685.05USGS
04/03/2012-138.357680.97USGS
06/04/2012-136.837679.45USGS
08/07/2012-151.047693.66USGS
10/03/2012-136.937679.55USGS
12/13/2012-137.417680.03USGS
02/06/2013-140.407683.02USGS
04/05/2013-143.707686.32USGS
06/06/2013-140.817683.43USGS
08/13/2013-141.207683.82USGS
10/29/2013-141.207683.82USGS
01/31/2014-137.227679.84USGS
02/20/2014-138.547681.16USGS
05/06/2014-142.657685.27USGS
06/04/2014-140.247682.86USGS
08/06/2014-137.987680.60USGS
10/08/2014-141.907684.52USGS
12/16/2014-142.087684.70USGS
05/27/2015-72.437615.05USGS
06/23/2015-72.357614.97USGS
09/22/2015-73.847616.46USGS
10/29/2015-72.487615.10USGS
02/10/2016-71.277613.89USGS
06/14/2016-74.267616.88USGS
10/04/2016-74.677617.29USGS
02/01/2017-73.327615.94USGS
02/28/2017-72.727615.34USGS
04/03/2017-72.057614.67USGS
06/13/2017-73.337615.95USGS
08/09/2017-73.797616.41USGS
10/06/2017-77.567620.18USGS
12/13/2017-71.547614.16USGS
02/26/2018-74.247616.86USGS
04/17/2018-75.757618.37USGS
06/19/2018-72.257614.87USGS
08/15/2018-72.897615.51USGS
10/10/2018-71.847614.46USGS
03/20/2019-72.487615.10USGS
04/18/2019-70.727613.34USGS
04/18/2019-70.717613.33RGWCD
05/22/2019-72.867615.48USGS
05/22/2019-72.857615.47RGWCD
06/20/2019-72.947615.56RGWCD
06/20/2019-72.907615.52USGS
07/17/2019-75.807618.42USGS
07/17/2019-75.857618.47RGWCD
08/15/2019-75.037617.65RGWCD
08/15/2019-75.047617.66USGS
09/11/2019-73.167615.78RGWCD,USGS
10/15/2019-74.267616.88RGWCD,USGS
11/25/2019-74.507617.12RGWCD,USGS
01/27/2020-72.727615.34RGWCD,USGS
02/26/2020-72.107614.72RGWCD
02/26/2020-72.097614.71USGS
03/31/2020-72.937615.55RGWCD,USGS
04/29/2020-74.087616.70RGWCD,USGS
05/27/2020-72.027614.64RGWCD,USGS
06/26/2020-73.357615.97RGWCD,USGS
07/22/2020-72.417615.03RGWCD,USGS
08/26/2020-71.987614.60RGWCD,USGS
09/23/2020-73.187615.80RGWCD,USGS
10/20/2020-74.377616.99RGWCD,USGS
11/19/2020-72.797615.41RGWCD,USGS
03/29/2021-80.897623.51USGS
03/29/2021-76.697619.31RGWCD
04/23/2021-72.727615.34RGWCD
04/23/2021-72.857615.47USGS
05/25/2021-74.337616.95USGS
05/25/2021-74.207616.82RGWCD
06/25/2021-72.827615.44USGS
06/25/2021-72.697615.31RGWCD
07/16/2021-78.667621.28RGWCD
07/16/2021-78.797621.41USGS
09/23/2021-73.127615.74RGWCD
09/23/2021-73.257615.87USGS
10/21/2021-71.647614.26RGWCD
10/21/2021-71.777614.39USGS
11/17/2021-73.997616.61USGS
11/17/2021-73.867616.48RGWCD
12/29/2021-75.487618.10RGWCD
12/29/2021-75.617618.23USGS
05/26/2022-76.157618.77USGS
05/26/2022-75.737618.35RGWCD
06/30/2022-67.407610.02RGWCD
06/30/2022-67.817610.43USGS
07/27/2022-74.687617.30RGWCD
07/27/2022-75.097617.71USGS
08/25/2022-75.047617.66USGS
08/25/2022-74.637617.25RGWCD
09/20/2022-75.537618.15USGS
09/20/2022-75.127617.74RGWCD
10/25/2022-73.247615.86RGWCD
10/25/2022-73.667616.28USGS
11/28/2022-74.607617.22USGS
11/28/2022-74.197616.81RGWCD
12/28/2022-71.587614.20USGS
12/28/2022-71.177613.79RGWCD
01/30/2023-73.277615.89USGS
01/30/2023-72.857615.47RGWCD
02/27/2023-73.617616.23RGWCD
02/27/2023-74.027616.64USGS
03/29/2023-74.087616.70RGWCD
03/29/2023-74.497617.11USGS
04/27/2023-73.847616.46USGS
04/27/2023-73.437616.05RGWCD
05/24/2023-74.107616.72RGWCD
05/24/2023-74.527617.14USGS
06/30/2023-73.147615.76USGS
06/30/2023-72.737615.35RGWCD
07/27/2023-74.377616.99USGS
07/27/2023-73.967616.58RGWCD
08/30/2023-74.427617.04USGS
08/30/2023-74.017616.63RGWCD
09/28/2023-73.047615.66RGWCD
09/28/2023-73.327615.94USGS
10/31/2023-73.347615.96RGWCD
11/28/2023-73.137615.75RGWCD
03/29/2024-72.847615.46RGWCD
04/24/2024-74.267616.88RGWCD
05/31/2024-74.707617.32RGWCD
06/26/2024-75.927618.54RGWCD
07/29/2024-75.247617.86RGWCD,USGS
08/29/2024-75.397618.01RGWCD
09/25/2024-74.857617.47RGWCD
10/29/2024-75.517618.13RGWCD
