Well NA04300815CBB SAG 13
Confined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

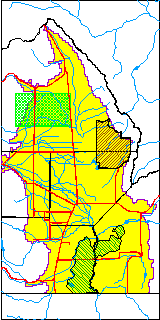

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.

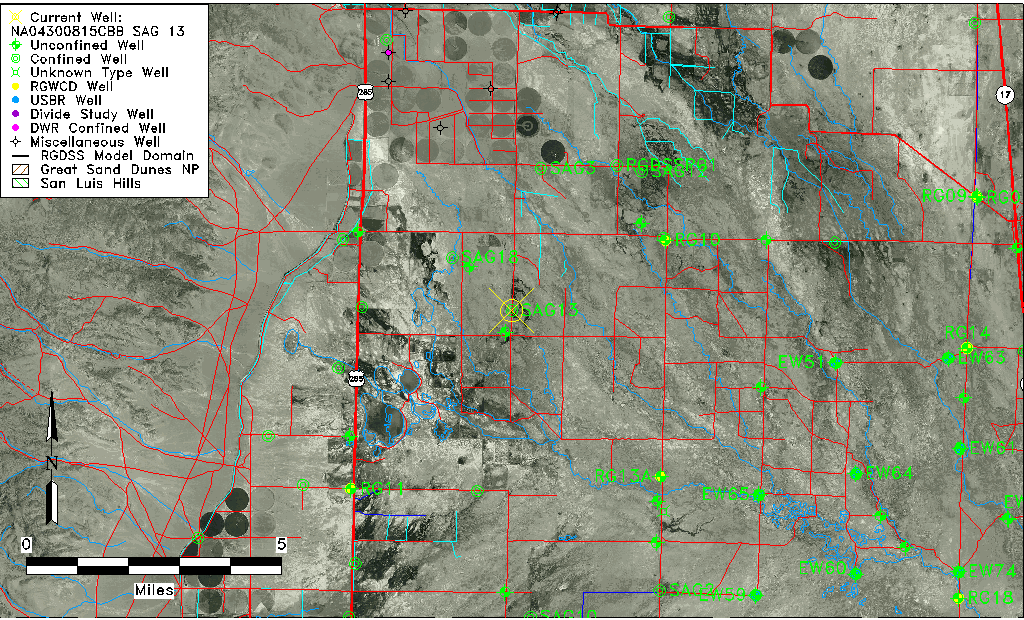

View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDNA04300815CBB SAG 13
RGWCD Confined Aquifer Well IDSAG13
USGS Well ID375820106052001
USGS Station NameNA04300815CBB SAG 13
USGS Construction Date01/01/1965
USGS Site TypeWell
USGS Site Use InformationWithdrawal of Water
USGS Groundwater Use InformationIrrigation
Data Source(s)USGS
Location Data
TRSNA04300815CBB SAG 13
USGS TRS 1NA04300815CBB SAG 13
USGS TRSNWNWSWS015T0043NR0008EN
Longitude/Latitude (NAD83)-106.08853585 , 37.97341835
Longitude/Latitude Data SourceDavis Engineering Survey
USGS Longitude/Latitude (NAD83)-106.0885278 , 37.97341667
Easting, Northing RGDSS-NAD83 (US ft)80578.90 , 356122.16
USGS TopographyValley flat
USGS CountySaguache County
Elevation and Depth Data
Ground Elevation (ft NAVD88)7590.17
Elevation Data SourceDavis Engineering Survey
USGS Ground Elevation (ft NAVD88)7590.17
1/3-Arc Second NED Ground Elevation (ft NAVD88)7589.63
1-Arc Second NED Ground Elevation (ft NAVD88)7589.56
SRTM Ground Elevation (ft NAVD88)7596.80
Total Depth (ft)830.00
USGS Well Depth (ft)830.00
Model Layer3
Model Layer SourceWell Depth
Depth of Bottom of Layer 171
Depth of Bottom of Layer 2190
Depth of Bottom of Layer 3790
Depth of Bottom of Layer 41868
Additional Well InformationGeohydrology, Construction
Aquifer Information
Aquifer TypeConfined
Aquifer Type SourceRGWCD_AQ
USGS Primary AquiferCenozoic Erathem
USGS Aquifer TypeConfined Single Aquifer
USGS Hydrologic UnitSaguache
USGS Data AvailableWater-level (GW.LEV)
Water-level Database Information
Water-level Count223
Water-level Date Range01/20/1969 thru 12/21/2021
Monitored within the last 18 monthsYes, most recently on 12/21/2021
Depth-to-Water Range (ft)-19.40 to -0.33
Water Table Elevation Range (ft NAVD88)7590.50 to 7609.57
Water-Level-Source:Number-of-MeasurementsRGWCD:114 USGS:109

Top of Page


Water-level Data

2019 to Present

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
01/20/1969-18.907609.07USGS
02/17/1970-19.407609.57USGS
04/15/1998-16.007606.17USGS
05/21/1998-11.007601.17USGS
06/29/1998-6.507596.67USGS
08/19/1998-9.407599.57USGS
09/22/1998-10.507600.67USGS
10/28/1998-12.507602.67USGS
11/30/1998-15.007605.17USGS
12/28/1998-15.007605.17USGS
03/01/1999-16.007606.17USGS
03/30/1999-16.007606.17USGS
04/29/1999-16.007606.17USGS
06/02/1999-9.507599.67USGS
06/24/1999-9.007599.17USGS
07/28/1999-10.107600.27USGS
09/03/1999-12.707602.87USGS
09/23/1999-13.807603.97USGS
10/29/1999-14.507604.67USGS
11/30/1999-16.807606.97USGS
12/16/1999-17.507607.67USGS
01/31/2000-18.407608.57USGS
02/29/2000-18.707608.87USGS
03/28/2000-19.007609.17USGS
04/25/2000-18.507608.67USGS
05/31/2000-10.007600.17USGS
06/26/2000-8.007598.17USGS
07/26/2000-9.307599.47USGS
08/29/2000-10.207600.37USGS
09/27/2000-10.507600.67USGS
10/26/2000-11.707601.87USGS
11/29/2000-14.807604.97USGS
03/29/2001-17.107607.27USGS
04/25/2001-16.007606.17USGS
05/30/2001-12.007602.17USGS
06/25/2001-8.507598.67USGS
09/25/2001-11.007601.17USGS
10/29/2001-12.707602.87USGS
12/20/2001-16.307606.47USGS
01/16/2002-17.107607.27USGS
02/27/2002-17.807607.97USGS
03/26/2002-17.507607.67USGS
05/28/2002-5.507595.67USGS
06/24/2002-2.507592.67USGS
09/30/2002-5.507595.67USGS
10/29/2002-9.007599.17USGS
11/26/2002-10.907601.07USGS
12/18/2002-12.007602.17USGS
01/16/2003-13.007603.17USGS
02/27/2003-14.007604.17USGS
03/27/2003-14.207604.37USGS
04/29/2003-12.007602.17USGS
05/28/2003-4.007594.17USGS
09/29/2003-6.007596.17USGS
10/29/2003-7.807597.97USGS
12/02/2003-10.207600.37USGS
12/30/2003-11.207601.37USGS
01/29/2004-11.707601.87USGS
02/26/2004-12.107602.27USGS
03/29/2004-12.217602.38USGS
04/28/2004-11.307601.47USGS
06/01/2004-4.507594.67USGS
09/30/2004-3.707593.87USGS
10/26/2004-6.907597.07USGS
01/20/2005-10.907601.07USGS
02/28/2005-11.837602.00USGS
03/30/2005-12.207602.37USGS
04/27/2005-12.207602.37USGS
05/26/2005-5.207595.37USGS
06/28/2005-1.657591.82USGS
09/29/2005-4.307594.47USGS
10/24/2005-7.097597.26USGS
11/29/2005-9.547599.71USGS
01/25/2006-11.357601.52USGS
02/23/2006-11.887602.05USGS
03/28/2006-11.687601.85USGS
04/25/2006-10.237600.40USGS
05/23/2006-5.957596.12USGS
08/31/2006-6.107596.27USGS
10/29/2008-9.277599.44USGS
11/25/2008-11.877602.04USGS
03/31/2009-14.977605.14USGS
04/30/2009-12.487602.65USGS
05/20/2009-10.177600.34USGS
08/26/2009-7.877598.04USGS
09/29/2009-10.277600.44USGS
10/26/2009-10.577600.74USGS
11/23/2009-11.577601.74USGS
01/25/2010-12.677602.84USGS
02/23/2010-12.977603.14USGS
03/29/2010-12.877603.04USGS
04/26/2010-13.177603.34USGS
05/26/2010-9.077599.24USGS
06/21/2010-6.677596.84USGS
07/29/2010-4.677594.84USGS
08/20/2010-5.677595.84USGS
09/28/2010-7.277597.44USGS
10/28/2010-8.477598.64USGS
11/29/2010-9.677599.84USGS
01/24/2011-11.077601.24USGS
02/22/2011-11.577601.74USGS
03/28/2011-12.717602.88USGS
04/26/2011-11.427601.59USGS
05/25/2011-9.217599.38USGS
06/27/2011-3.877594.04USGS
07/19/2011-2.777592.94USGS
08/29/2011-2.177592.34USGS
09/28/2011-4.777594.94USGS
10/31/2011-6.177596.34USGS
11/22/2011-12.077602.24RGWCD
03/14/2012-11.577601.74RGWCD
10/29/2012-6.417596.58RGWCD
11/28/2012-7.377597.54RGWCD
12/12/2012-7.777597.94RGWCD
01/22/2013-8.877599.04RGWCD
02/27/2013-9.177599.34RGWCD
03/18/2013-9.677599.84RGWCD
07/30/2013-0.707590.87RGWCD
06/25/2014-4.677594.84RGWCD
08/21/2014-4.377594.54RGWCD
09/29/2014-5.077595.24RGWCD
10/20/2014-7.077597.24RGWCD
11/24/2014-9.017599.18RGWCD
12/16/2014-10.047600.21RGWCD
01/28/2015-10.987601.15RGWCD
03/25/2015-11.987602.15RGWCD
04/13/2015-10.997601.16RGWCD
07/15/2015-7.817597.98RGWCD
08/25/2015-7.097597.26RGWCD
09/29/2015-8.397598.56RGWCD
10/26/2015-9.107599.27RGWCD
11/24/2015-11.197601.36RGWCD
12/30/2015-12.127602.29RGWCD
01/18/2016-12.277602.44RGWCD
02/25/2016-13.107603.27RGWCD
03/29/2016-13.437603.60RGWCD
04/20/2016-12.797602.96RGWCD
05/25/2016-10.587600.75RGWCD
06/23/2016-8.057598.22RGWCD
08/30/2016-7.567597.73RGWCD
09/30/2016-9.527599.69RGWCD
10/25/2016-10.357600.52RGWCD
11/23/2016-11.977602.14RGWCD
12/15/2016-12.797602.96RGWCD
01/18/2017-13.687603.85RGWCD
02/22/2017-14.397604.56RGWCD
03/15/2017-14.377604.54RGWCD
04/12/2017-13.997604.16RGWCD
05/30/2017-4.487594.65RGWCD
06/13/2017-5.557595.72RGWCD
07/13/2017-3.367593.53RGWCD
08/09/2017-0.337590.50RGWCD
10/03/2017-5.517595.68RGWCD
11/08/2017-10.597600.76RGWCD
12/07/2017-12.867603.03RGWCD
01/08/2018-13.457603.62RGWCD
02/13/2018-13.257603.42RGWCD
03/12/2018-13.007603.17RGWCD
04/12/2018-10.327600.49RGWCD
05/15/2018-8.327598.49RGWCD
06/11/2018-6.377596.54RGWCD
07/16/2018-2.057592.22RGWCD
08/09/2018-2.557592.72RGWCD
09/11/2018-3.057593.22RGWCD
10/08/2018-5.917596.08RGWCD
11/07/2018-8.847599.01RGWCD
12/11/2018-10.667600.83RGWCD
01/25/2019-11.357601.52RGWCD
02/15/2019-11.217601.38RGWCD
03/13/2019-14.507604.67RGWCD
04/11/2019-12.957603.12RGWCD
05/07/2019-9.667599.83RGWCD
06/13/2019-7.637597.80RGWCD
07/15/2019-3.617593.78RGWCD
08/13/2019-5.897596.06RGWCD
09/12/2019-5.087595.25RGWCD
10/09/2019-8.627598.79RGWCD
11/22/2019-11.867602.03RGWCD
12/10/2019-12.477602.64RGWCD
01/17/2020-13.367603.53RGWCD
02/20/2020-13.517603.68RGWCD
03/24/2020-12.527602.69RGWCD
04/27/2020-10.097600.26RGWCD
05/26/2020-6.267596.43RGWCD
06/24/2020-2.857593.02RGWCD
07/13/2020-2.627592.79RGWCD
09/16/2020-2.357592.52RGWCD
10/16/2020-5.067595.23RGWCD
11/13/2020-8.227598.39RGWCD
12/21/2020-9.697599.86RGWCD
02/17/2021-11.337601.50RGWCD
03/26/2021-12.107602.27RGWCD
04/22/2021-13.777603.94RGWCD
05/20/2021-12.207602.37RGWCD
06/21/2021-13.307603.47RGWCD
07/13/2021-8.217598.38RGWCD
08/17/2021-8.657598.82RGWCD
09/16/2021-8.397598.56RGWCD
10/27/2021-10.897601.06RGWCD
11/29/2021-12.107602.27RGWCD
12/21/2021-11.807601.97RGWCD
