Well DIV9122 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

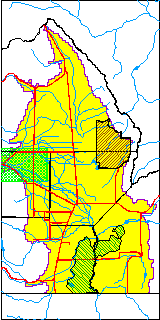

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DIV9122 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | Divide Study |
Location Data | |
Longitude/Latitude (NAD83) | -106.24124081 , 37.67970708 |
Longitude/Latitude Data Source | Divide Study |
Easting, Northing RGDSS-NAD83 (US ft) | 35912.37 , 249433.38 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7770.30 |
Elevation Data Source | Divide study surveying by Davis Engineering |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7769.80 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7769.91 |
SRTM Ground Elevation (ft NAVD88) | 7775.50 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 66 |
Depth of Bottom of Layer 2 | 193 |
Depth of Bottom of Layer 3 | 286 |
Depth of Bottom of Layer 4 | 655 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | DIV_AQ |
Water-level Database Information | |
Water-level Count | 10 |
Water-level Date Range | 03/27/2007 thru 03/28/2017 |
Monitored within the last 18 months | No, most recently on 03/28/2017 |
Depth-to-Water Range (ft) | 39.58 to 60.54 |
Water Table Elevation Range (ft NAVD88) | 7709.76 to 7730.72 |
Water-Level-Source:Number-of-Measurements | Divide Study:10 |
