Well DUN107t | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

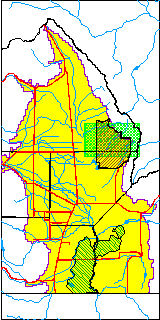

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUN107t |
GSDNP Well Name | 107t |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.62178088 , 37.81189087 |
Longitude/Latitude Data Source | HRS Dunes database |
Easting, Northing RGDSS-NAD83 (US ft) | 215111.45 , 297045.28 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7745.24 |
Elevation Data Source | HRS Dunes database |
HRS Dunes Well database (ft NGVD29) | 7741.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7744.41 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7734.70 |
SRTM Ground Elevation (ft NAVD88) | 7725.66 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 295 |
Depth of Bottom of Layer 2 | 694 |
Depth of Bottom of Layer 3 | 1152 |
Depth of Bottom of Layer 4 | 1947 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 5 |
Water-level Date Range | 08/14/1998 thru 07/15/1999 |
Monitored within the last 18 months | No, most recently on 07/15/1999 |
Depth-to-Water Range (ft) | 31.43 to 31.99 |
Water Table Elevation Range (ft NAVD88) | 7713.25 to 7713.81 |
Water-Level-Source:Number-of-Measurements | HRS:5 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
08/14/1998 | 31.99 | 7713.25 | HRS |
10/23/1998 | 31.63 | 7713.61 | HRS |
02/17/1999 | 31.43 | 7713.81 | HRS |
05/09/1999 | 31.73 | 7713.51 | HRS |
07/15/1999 | 31.73 | 7713.51 | HRS |
