Well DUN57 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

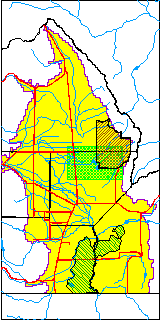

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUN57 |
GSDNP Well Name | 57 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.73746752 , 37.69089055 |
Longitude/Latitude Data Source | HRS Dunes database |
Easting, Northing RGDSS-NAD83 (US ft) | 181668.28 , 253003.92 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7525.27 |
Elevation Data Source | CSU well databse |
CSU Dunes Well database (ft NGVD29) | 7521.23 |
HRS Dunes Well database (ft NGVD29) | 7521.22998 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7525.58 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7529.26 |
SRTM Ground Elevation (ft NAVD88) | 7525.66 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 133 |
Depth of Bottom of Layer 2 | 437 |
Depth of Bottom of Layer 3 | 1625 |
Depth of Bottom of Layer 4 | 3185 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 21 |
Water-level Date Range | 04/30/1991 thru 10/14/1991 |
Monitored within the last 18 months | No, most recently on 10/14/1991 |
Depth-to-Water Range (ft) | 0.70 to 5.77 |
Water Table Elevation Range (ft NAVD88) | 7519.50 to 7524.57 |
Water-Level-Source:Number-of-Measurements | HRS:21 |
