Well DUN63
Unconfined



Home | Well Information | Hydrograph | Water Level Data Table
RGWCD Unconfined Wells:MapList
RGWCD Confined Wells:MapList
Baca Grant Wells:MapList
Divide Study Wells:MapList
Upper Rio Grande Wells:MapList
DWR Confined Wells:MapList
CWCD Wells:MapList
USBR Wells:MapList
USGS Wells:MapList
Dunes Hydro Study Wells:MapList
GSDNP Boundary Wells:MapList
Recently Monitored Wells:MapList
Unconfined Wells:MapList
Confined Wells:MapList

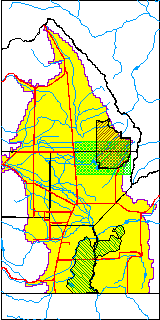

Index Map showing
model domain.

Green shaded area
enlarged below.

Click on map
to quickly move to
another location.


View Digital Orthophoto Quadrangle for this area

Well Information Table
Common Well IDDUN63
GSDNP Well Name63
USGS Site Use InformationUnknown
USGS Groundwater Use InformationUnknown
Data Source(s)HRS
Location Data
Longitude/Latitude (NAD83)-105.68495155 , 37.71665160
Longitude/Latitude Data SourceHRS Dunes database
Easting, Northing RGDSS-NAD83 (US ft)196861.21 , 262374.18
Elevation and Depth Data
Ground Elevation (ft NAVD88)7551.27
Elevation Data SourceCSU well databse
CSU Dunes Well database (ft NGVD29)7547.11
HRS Dunes Well database (ft NGVD29)7547.10986
1/3-Arc Second NED Ground Elevation (ft NAVD88)7550.95
1-Arc Second NED Ground Elevation (ft NAVD88)7552.50
SRTM Ground Elevation (ft NAVD88)7549.93
Model Layer1
Model Layer SourceAquifer Type
Depth of Bottom of Layer 1159
Depth of Bottom of Layer 2477
Depth of Bottom of Layer 31554
Depth of Bottom of Layer 43706
Additional Well InformationNONE
Aquifer Information
Aquifer TypeUnconfined
Aquifer Type SourceHRS_AQUIFER
Water-level Database Information
Water-level Count19
Water-level Date Range05/24/1991 thru 10/14/1991
Monitored within the last 18 monthsNo, most recently on 10/14/1991
Depth-to-Water Range (ft)0.05 to 3.08
Water Table Elevation Range (ft NAVD88)7548.19 to 7551.22
Water-Level-Source:Number-of-MeasurementsHRS:19

Top of Page


Water-level Data

1967 to Present

Top of Page


Measurement DateDepth to
Water (ft)
Elevation
(ft NAVD88)
Data
Source(s)
05/24/19910.087551.19HRS
05/29/19910.277551.00HRS
06/04/19911.267550.01HRS
06/10/19911.297549.98HRS
06/19/19910.757550.52HRS
06/21/19910.057551.22HRS
06/26/19913.087548.19HRS
07/02/19910.157551.12HRS
07/10/19910.157551.12HRS
07/16/19910.137551.14HRS
07/23/19910.757550.52HRS
08/05/19910.757550.52HRS
08/12/19910.757550.52HRS
08/21/19910.077551.20HRS
08/29/19910.057551.22HRS
09/07/19910.057551.22HRS
09/12/19910.077551.20HRS
09/27/19912.877548.40HRS
10/14/19912.767548.51HRS
