Well DUN86t | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

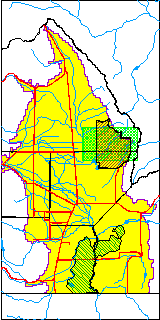

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUN86t |
GSDNP Well Name | 86t |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.63560392 , 37.79191588 |
Longitude/Latitude Data Source | HRS Dunes database |
Easting, Northing RGDSS-NAD83 (US ft) | 211121.79 , 289772.47 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7712.24 |
Elevation Data Source | HRS Dunes database |
HRS Dunes Well database (ft NGVD29) | 7708.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7706.43 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7702.91 |
SRTM Ground Elevation (ft NAVD88) | 7703.52 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 267 |
Depth of Bottom of Layer 2 | 655 |
Depth of Bottom of Layer 3 | 1267 |
Depth of Bottom of Layer 4 | 2427 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 6 |
Water-level Date Range | 07/12/1998 thru 07/15/1999 |
Monitored within the last 18 months | No, most recently on 07/15/1999 |
Depth-to-Water Range (ft) | 27.56 to 28.25 |
Water Table Elevation Range (ft NAVD88) | 7683.99 to 7684.68 |
Water-Level-Source:Number-of-Measurements | HRS:6 |
