Well DUN9t | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

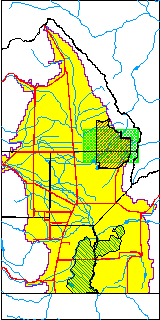

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUN9t |
GSDNP Well Name | 9t |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.63304828 , 37.78200154 |
Longitude/Latitude Data Source | HRS Dunes database |
Easting, Northing RGDSS-NAD83 (US ft) | 211861.32 , 286163.74 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7684.24 |
Elevation Data Source | HRS Dunes database |
HRS Dunes Well database (ft NGVD29) | 7680.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7681.80 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7682.32 |
SRTM Ground Elevation (ft NAVD88) | 7685.14 |
Model Layer | 1 |
Model Layer Source | Aquifer Type |
Depth of Bottom of Layer 1 | 242 |
Depth of Bottom of Layer 2 | 630 |
Depth of Bottom of Layer 3 | 1255 |
Depth of Bottom of Layer 4 | 2462 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 6 |
Water-level Date Range | 07/12/1998 thru 07/15/1999 |
Monitored within the last 18 months | No, most recently on 07/15/1999 |
Depth-to-Water Range (ft) | 7.79 to 8.71 |
Water Table Elevation Range (ft NAVD88) | 7675.53 to 7676.45 |
Water-Level-Source:Number-of-Measurements | HRS:6 |
