Well DUNJMW1 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

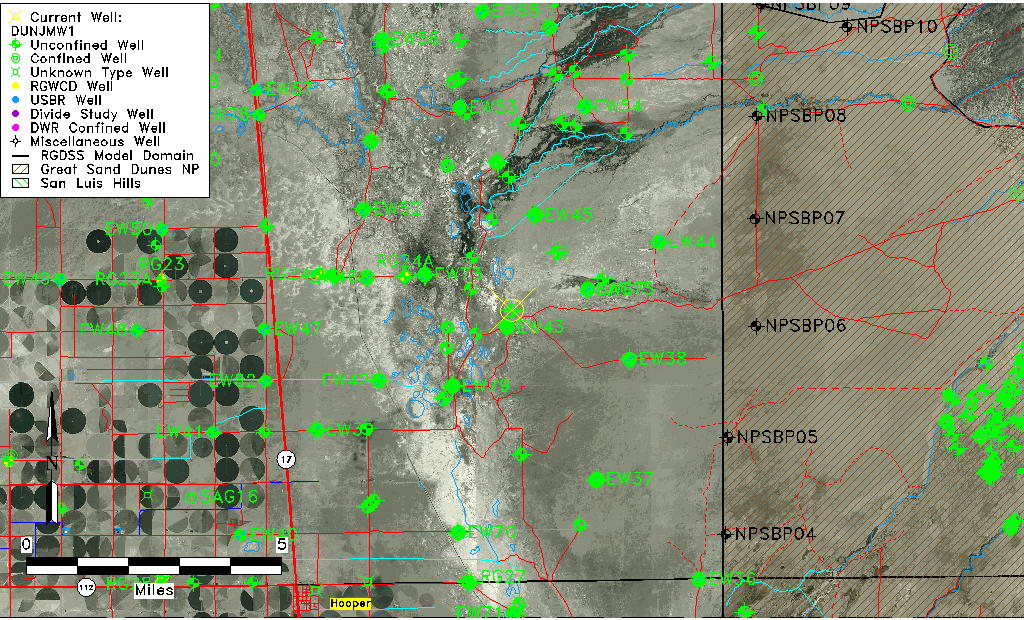

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUNJMW1 |
GSDNP Well Name | JMW-1 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.80357697 , 37.82756691 |
Longitude/Latitude Data Source | BACA wells reported by Halepaska |
Halapaska & Assoc. Easting/Northing (CO-S) | 1912484.00000000 , 422839.000000000 |
Easting, Northing RGDSS-NAD83 (US ft) | 162617.79 , 302778.22 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7534.98 |
Elevation Data Source | BACA well (HRS from topo) |
BACA Well database (HRS, ft NGVD29) | 7531 |
HRS Dunes Well database (ft NGVD29) | 7531.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7534.20 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7536.18 |
SRTM Ground Elevation (ft NAVD88) | 7535.30 |
Total Depth (ft) | 7.90 |
Model Layer | 1 |
Model Layer Source | Dunes Layer |
Depth of Bottom of Layer 1 | 86 |
Depth of Bottom of Layer 2 | 315 |
Depth of Bottom of Layer 3 | 1643 |
Depth of Bottom of Layer 4 | 4044 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 4 |
Water-level Date Range | 12/14/1995 thru 09/19/1996 |
Monitored within the last 18 months | No, most recently on 09/19/1996 |
Depth-to-Water Range (ft) | 4.32 to 6.48 |
Water Table Elevation Range (ft NAVD88) | 7528.50 to 7530.66 |
Water-Level-Source:Number-of-Measurements | HRS:4 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
12/14/1995 | 4.32 | 7530.66 | HRS |
05/22/1996 | 5.84 | 7529.14 | HRS |
06/29/1996 | 6.48 | 7528.50 | HRS |
09/19/1996 | 6.34 | 7528.64 | HRS |
