Well DUNSAPW1 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

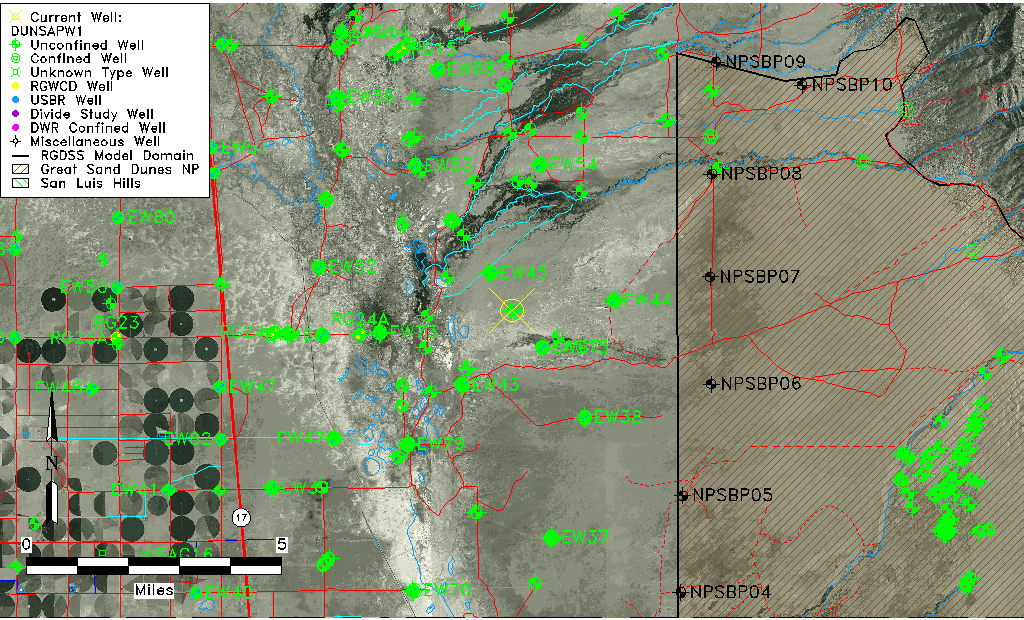

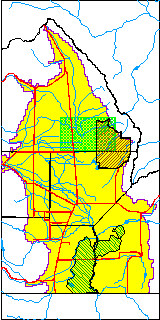

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUNSAPW1 |
GSDNP Well Name | SAPW-1 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.78756140 , 37.84409050 |
Longitude/Latitude Data Source | BACA wells reported by Halepaska |
Halapaska & Assoc. Easting/Northing (CO-S) | 1917128.00000000 , 428841.000000000 |
Easting, Northing RGDSS-NAD83 (US ft) | 167249.98 , 308786.80 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7544.04 |
Elevation Data Source | BACA well (HRS from topo) |
BACA Well database (HRS, ft NGVD29) | 7540 |
HRS Dunes Well database (ft NGVD29) | 7540.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7543.81 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7542.54 |
SRTM Ground Elevation (ft NAVD88) | 7553.74 |
Total Depth (ft) | 7.50 |
Model Layer | 1 |
Model Layer Source | Dunes Layer |
Depth of Bottom of Layer 1 | 111 |
Depth of Bottom of Layer 2 | 349 |
Depth of Bottom of Layer 3 | 1706 |
Depth of Bottom of Layer 4 | 4286 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 5 |
Water-level Date Range | 12/13/1995 thru 09/18/1996 |
Monitored within the last 18 months | No, most recently on 09/18/1996 |
Depth-to-Water Range (ft) | 2.46 to 5.03 |
Water Table Elevation Range (ft NAVD88) | 7539.01 to 7541.58 |
Water-Level-Source:Number-of-Measurements | HRS:5 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
12/13/1995 | 4.42 | 7539.62 | HRS |
03/14/1996 | 3.37 | 7540.67 | HRS |
05/22/1996 | 3.93 | 7540.11 | HRS |
06/25/1996 | 2.46 | 7541.58 | HRS |
09/18/1996 | 5.03 | 7539.01 | HRS |
