Well DUNSLPW2 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

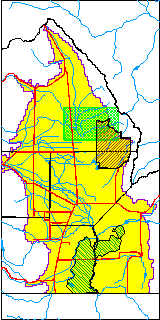

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUNSLPW2 |
GSDNP Well Name | SLPW-2 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.76266107 , 37.90014029 |
Longitude/Latitude Data Source | BACA wells reported by Halepaska |
Halapaska & Assoc. Easting/Northing (CO-S) | 1924375.00000000 , 449229.000000000 |
Easting, Northing RGDSS-NAD83 (US ft) | 174459.47 , 329181.99 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7582.15 |
Elevation Data Source | BACA well (HRS from topo) |
BACA Well database (HRS, ft NGVD29) | 7578 |
HRS Dunes Well database (ft NGVD29) | 7578.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7582.33 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7581.47 |
SRTM Ground Elevation (ft NAVD88) | 7584.34 |
Total Depth (ft) | 5.80 |
Model Layer | 1 |
Model Layer Source | Dunes Layer |
Depth of Bottom of Layer 1 | 171 |
Depth of Bottom of Layer 2 | 498 |
Depth of Bottom of Layer 3 | 1635 |
Depth of Bottom of Layer 4 | 4311 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 4 |
Water-level Date Range | 12/13/1995 thru 09/20/1996 |
Monitored within the last 18 months | No, most recently on 09/20/1996 |
Depth-to-Water Range (ft) | 2.34 to 4.51 |
Water Table Elevation Range (ft NAVD88) | 7577.64 to 7579.81 |
Water-Level-Source:Number-of-Measurements | HRS:4 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
12/13/1995 | 2.34 | 7579.81 | HRS |
05/19/1996 | 3.01 | 7579.14 | HRS |
06/22/1996 | 3.67 | 7578.48 | HRS |
09/20/1996 | 4.51 | 7577.64 | HRS |
