Well DUNWDMW2 | ||
Home | Well Information | Hydrograph | Water Level Data Table
|

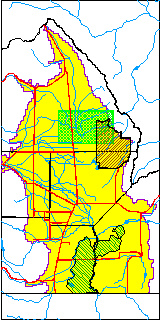

Index Map showing model domain. Green shaded area Click on map |
Well Information Table | |
---|---|
Common Well ID | DUNWDMW2 |
GSDNP Well Name | WDMW-2 |
USGS Site Use Information | Unknown |
USGS Groundwater Use Information | Unknown |
Data Source(s) | HRS |
Location Data | |
Longitude/Latitude (NAD83) | -105.80100281 , 37.88042650 |
Longitude/Latitude Data Source | BACA wells reported by Halepaska |
Halapaska & Assoc. Easting/Northing (CO-S) | 1913289.00000000 , 442084.000000000 |
Easting, Northing RGDSS-NAD83 (US ft) | 163389.09 , 322019.51 |
Elevation and Depth Data | |
Ground Elevation (ft NAVD88) | 7548.04 |
Elevation Data Source | BACA well (HRS from topo) |
BACA Well database (HRS, ft NGVD29) | 7544 |
HRS Dunes Well database (ft NGVD29) | 7544.00000 |
1/3-Arc Second NED Ground Elevation (ft NAVD88) | 7547.76 |
1-Arc Second NED Ground Elevation (ft NAVD88) | 7549.03 |
SRTM Ground Elevation (ft NAVD88) | 7553.09 |
Total Depth (ft) | 6.80 |
Model Layer | 1 |
Model Layer Source | Dunes Layer |
Depth of Bottom of Layer 1 | 130 |
Depth of Bottom of Layer 2 | 367 |
Depth of Bottom of Layer 3 | 1634 |
Depth of Bottom of Layer 4 | 4664 |
Additional Well Information | NONE |
Aquifer Information | |
Aquifer Type | Unconfined |
Aquifer Type Source | HRS_AQUIFER |
Water-level Database Information | |
Water-level Count | 3 |
Water-level Date Range | 12/13/1995 thru 06/23/1996 |
Monitored within the last 18 months | No, most recently on 06/23/1996 |
Depth-to-Water Range (ft) | 4.61 to 5.88 |
Water Table Elevation Range (ft NAVD88) | 7542.16 to 7543.43 |
Water-Level-Source:Number-of-Measurements | HRS:3 |
Measurement Date | Depth to Water (ft) | Elevation (ft NAVD88) | Data Source(s) |
---|---|---|---|
12/13/1995 | 4.61 | 7543.43 | HRS |
05/21/1996 | 4.95 | 7543.09 | HRS |
06/23/1996 | 5.88 | 7542.16 | HRS |
